Details

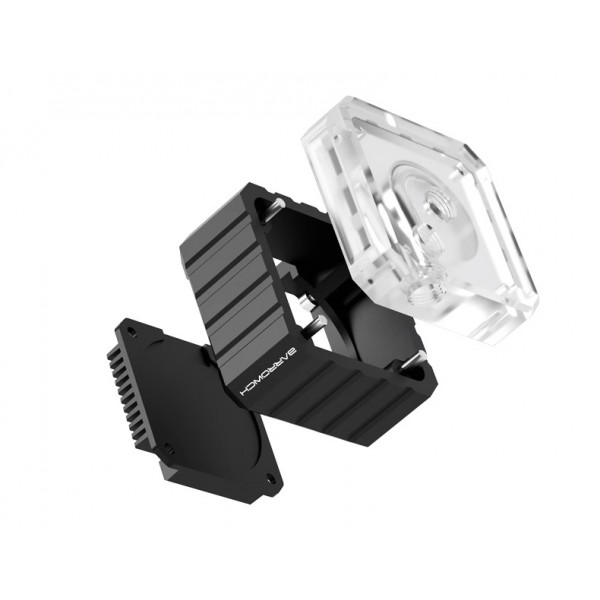

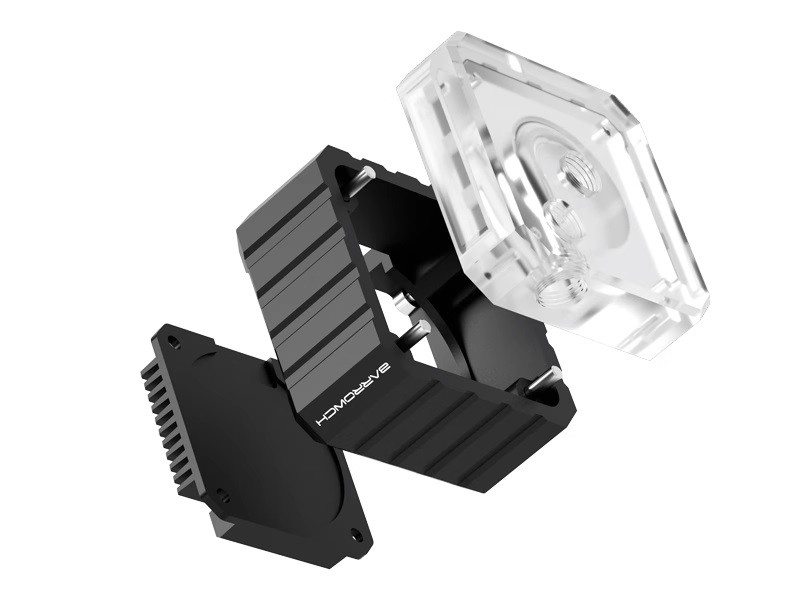

The Barrowch FBDCHK is a modding kit that turns a DDC pump into a compact, finished unit: a CNC-machined black aluminum housing, a finned heat sink plate for the back of the pump and a clear acrylic top with the G1/4" ports. Built-in 5V ARGB lighting shines through the acrylic. You fit your own DDC pump core; the pump is not included.
Properties
- Type
- DDC pump housing kit with acrylic top
- Ports
- 3x G1/4" (2 on top, 1 on the side)
- Size
- 74.5 x 74.5 x 56 mm
- Material
- CNC-machined aluminum alloy, acrylic top
- Color
- Black
- Lighting
- 5V ARGB (Barrow LRC 2.0)
- Pump
- Not included
- Pieces in the pack
- 1 set
Build your own DDC pump unit
Barrow makes this kit for pump modding. The DDC pump core sits in the aluminum housing, the heat sink plate closes the back and the acrylic top carries the inlet and outlet. Barrow shows the steps for both Chinese-made and imported DDC pump cores: line up the power connector of the pump with the notch in the heat sink and put the rubber ring into the housing (on an imported core, first remove the screw from its back shell and set the outlet in line with the notch of the housing), turn the outlet to the direction you want, fit the acrylic top, then fix the heat sink with its screws so its notch faces the same way as the notch in the housing.
Aluminum and acrylic
The housing is machined from aluminum alloy on a CNC machine and anodized; Barrow says the finish lasts and keeps its color. The top is high-transmittance clear acrylic, which Barrow chose to show the lighting inside.
Mounting
Screw holes in the bottom of the housing take Barrow's DDC pump bracket, and holes on the side take a Barrow side bracket, so the finished pump can sit on the case floor or on a wall. The brackets are separate products.
ARGB lighting
The lighting belongs to Barrow's LRC 2.0 system and runs on 5V. It works with Barrow's LRC 2.0 controllers, or with the 5V 3-pin ARGB header of your motherboard (ASUS Aura Sync, Gigabyte RGB Fusion 2.0, ASRock Polychrome Sync and similar) through Barrow's ZBDZJX-5 adapter cable. Neither the controller nor the adapter cable is in the box. Barrow notes that the adapter fits 5V 3-pin ARGB headers only.
Technical data
| Model | FBDCHK |
| Type | DDC pump housing, heat sink and acrylic top |
| Pump compatibility | DDC pump cores (Barrow shows Chinese-made and imported cores) |
| Ports | 3x G1/4" |
| Dimensions | 74.5 x 74.5 x 56 mm |
| Material | Aluminum alloy, acrylic |
| Lighting | 5V ARGB (3-pin), Barrow LRC 2.0 |
| Color | Black |
Notes
- The DDC pump is not included.
- Barrow sells the FBDCHK in black and silver. This listing is the black version.
- Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.
In the box
- 1x Barrowch DDC ARGB Pump Top Enclosure - Black
