Details

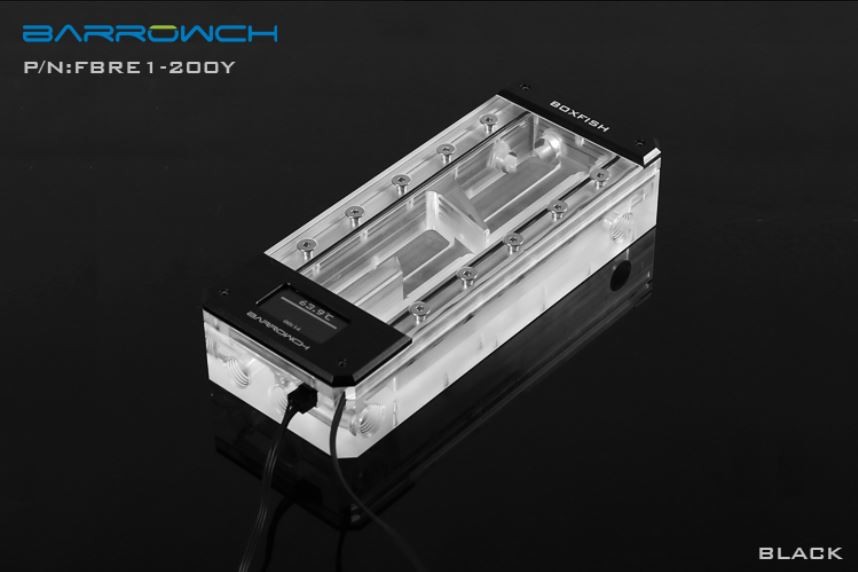

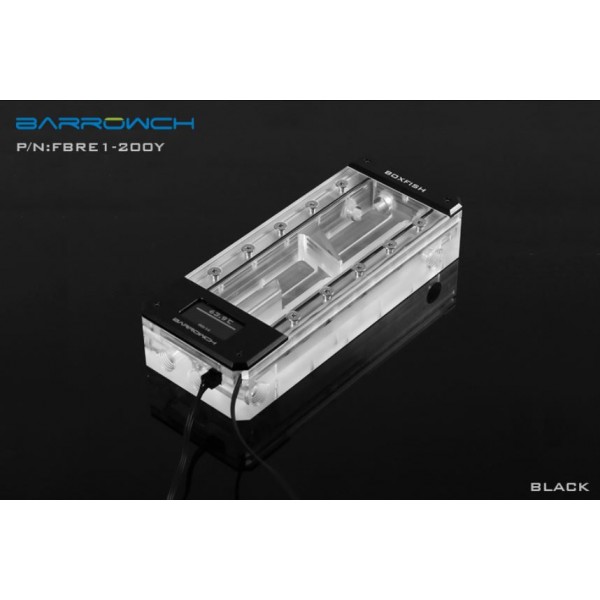

The Barrowch FBRE1-200Y is a 200 mm box reservoir from the Boxfish series: a clear acrylic body between black CNC-machined aluminum end plates, with a small OLED screen that shows the coolant temperature and built-in 5V ARGB lighting. It measures 200 x 78 x 40 mm and has 8 standard G1/4" ports.
Properties
- Type
- Box reservoir with temperature display
- Size
- 200 x 78 x 40 mm
- Ports
- 8 x G1/4", on both ends and on the sides
- Display
- OLED, coolant temperature
- Material
- Acrylic body, CNC aluminum end plates
- Color
- Black
- Lighting
- 5V ARGB (Barrow LRC 2.0)
- Pieces in the pack
- 1 set
Temperature on the front
The OLED screen in the lower end plate shows the coolant temperature in real time as a number and a bar, so you can check it at a glance without software. Barrow says to set the motherboard fan header that powers the reservoir to full speed in the BIOS before you switch on, so it gets a steady 12V; a low voltage can cause faults or damage. The screen is fragile, so do not press on it.

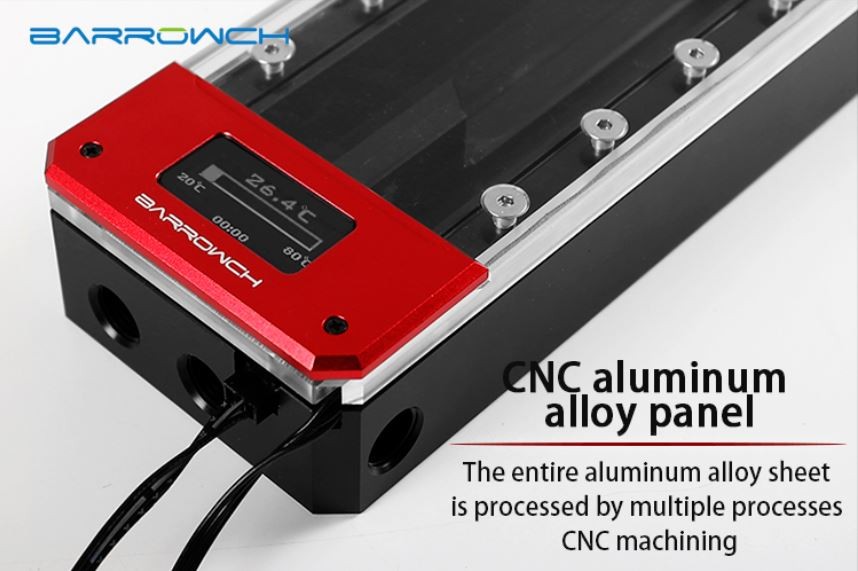

Acrylic and aluminum
The body is clear acrylic, and the end plates are aluminum alloy, CNC-machined and anodized. Barrow sells the Boxfish with black, red or silver plates.

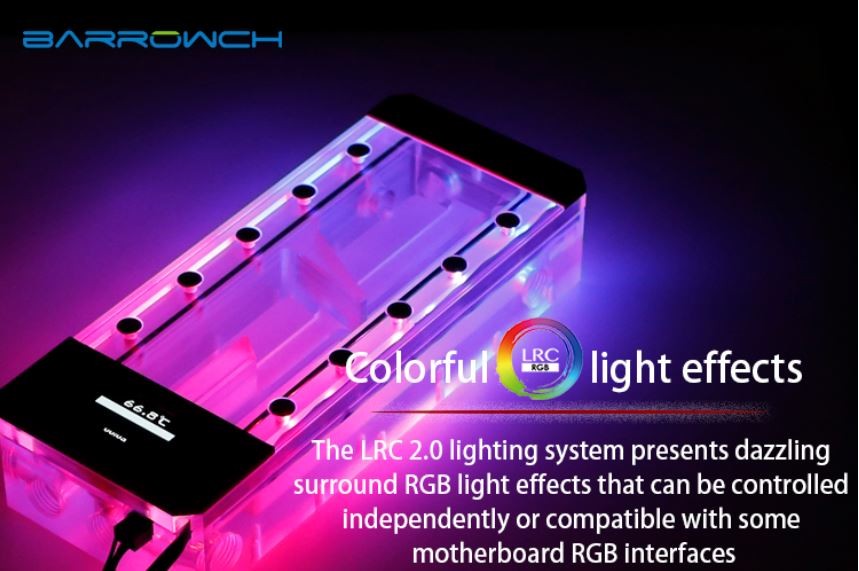

ARGB lighting
The lighting belongs to Barrow's LRC 2.0 system and runs on 5V. Control it with a Barrow LRC 2.0 controller, or sync it with the 5V 3-pin ARGB header of your motherboard (ASUS Aura Sync, Gigabyte RGB Fusion 2.0, ASRock Polychrome Sync and similar) through Barrow's ZBDZJX-5 adapter cable. The controller and the adapter cable are not in the box.
Velcro included, bracket optional
Barrow includes Velcro strips: stick one side to the back of the reservoir and the other to the case wherever you want it. For a firmer hold, Barrow's reservoir bracket (sold separately) screws to the back with the four M4 x 6 mm screws in the accessory bag; it fits cases whose holes match the bracket. The back also has rows of preset M4 threaded holes, 71 mm and 50 mm apart across the width and 30 mm apart along the length, so you can screw the reservoir to the case directly where two or more holes line up.
Technical data
| Model | FBRE1-200Y (Boxfish series) |
| Dimensions | 200 x 78 x 40 mm |
| Threads | G1/4" |
| Display | OLED, coolant temperature |
| Display power | Motherboard fan header, 12V |
| Material | Acrylic, aluminum alloy |
| Lighting | 5V ARGB (3-pin), Barrow LRC 2.0 |
| Back mounting holes | M4 thread |
| Color | Black |
Notes
- Barrow makes the Boxfish FBRE1 in 150, 200 and 250 mm lengths with black, red or silver end plates. This listing is the 200 mm black version.
- Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.
In the box
- 1x Barrowch 200mm Boxfish Series Acrylic Box Reservoir with OLED Display & D-RGB LED
- 1x Velcro mounting strip set
- 4x M4 x 6 mm screw (for the optional bracket)
