Details

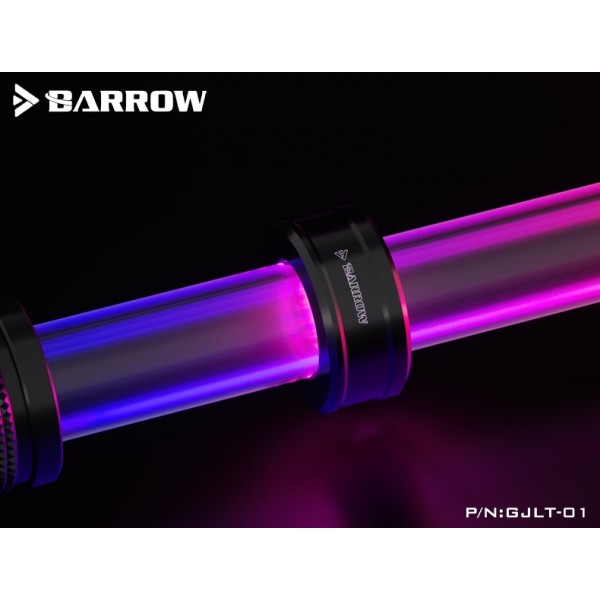

The Barrow GJLT-01 is a lighting ring for 14 mm OD hard tubing, part of Barrow's LRC 2.0 Aurora lighting system. The black ring slides over a transparent tube and shines its light into the tube wall, so the light travels through the tube and the whole run glows. It weighs only 2.7 g and can sit anywhere along the tube.
Properties
- Type
- Lighting ring for transparent hard tubing
- For tube
- 14 mm OD
- Size
- 23 mm outer diameter, 14.2 mm bore, 12.3 mm wide
- Weight
- 2.7 g
- Lighting system
- Barrow LRC 2.0 Aurora RGB
- Color
- Black
- Pieces in the pack
- 1 ring with cable
Light the tube from the inside out
Barrow says the light is transmitted through the tube wall, which makes the tube look lustrous and brilliant. Barrow calls the effect Aurora.
Place it where you want
The bore of 14.2 mm slides over 14 mm OD hard tubing and is not fixed, so the ring can light the tube at any spot you choose. Slide it onto the tube before you fit the second fitting. At 2.7 g, Barrow says it puts no load on the tube.
Small split plug
The ring connects through a miniature split-type socket on its edge, which makes installation and cable management easy: the cable can be plugged in after the ring is on the tube.
Control and Aura Sync
The ring belongs to Barrow's LRC 2.0 Aurora RGB lighting control system. Barrow says it can be connected to the motherboard through its ZBDZJX-5 5V cable for Aura Sync, or to its DFZJX-01 16-way controller. The cables and controllers are sold separately.
Technical data
| Model | GJLT-01 |
| Type | Hard tube lighting ring |
| Fits | 14 mm OD transparent hard tube |
| Outer diameter | 23 mm |
| Inner diameter | 14.2 mm |
| Width | 12.3 mm |
| Height with plug | 24.1 mm |
| Weight | 2.7 g |
| Lighting control | Barrow LRC 2.0 Aurora, 5V |
| Color | Black |
Notes
- No controller is included; Barrow says to buy it separately if needed.
- The ring has to go on the tube before both ends are fitted.
- Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.
In the box
- 1x 14mm Lighting Ring
- 1x Miniature Split-Type Wiring Harness
