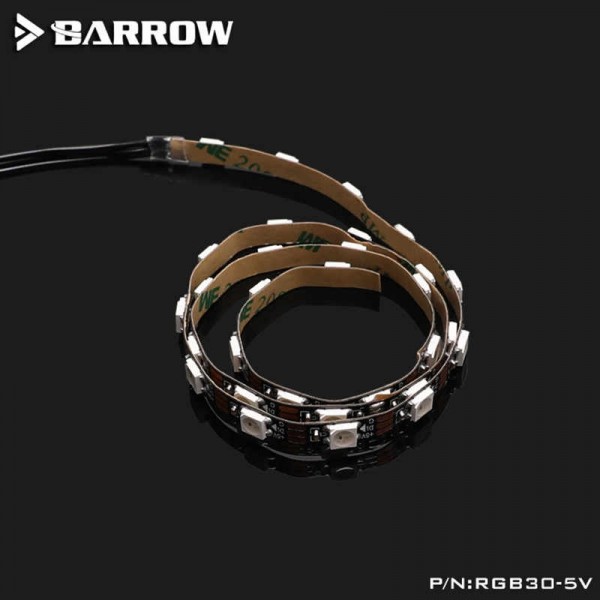

Barrow LRC2.0 Flexible 5V Addressable RGB Strip | 0.5M (RGB30-5V)

The Barrow RGB30-5V is a 0.5 m flexible, self-adhesive LED strip for Barrow LRC 2.0 (Aurora) 5V addressable RGB lighting. It carries 30 LEDs, can be cut to length at the marked points and plugs in with a 2510 3-pin connector. Barrow made it to light products such as distribution (waterway) plates and as a replacement strip for them.

Properties

Type

5V addressable RGB LED strip, self-adhesive

Length

0.5 m

LEDs

30

Voltage

5V DC

Connector

2510 3-pin male

Lighting system

Barrow LRC 2.0 (Aurora)

Pieces in the pack

1

Addressable LEDs

The strip works with Barrow's LRC 2.0 system, which can light the LEDs in sync or let them change color independently, for running and rainbow effects. Barrow says its LED chips give high color rendering and are durable.

Cut to the length you need

Crop marks between the LEDs show where the strip can be cut, so it fits the light channel of a distro plate, a case edge or a reservoir. Cut only at the marks; Barrow warns that cutting elsewhere can leave part of the strip dark.

Easy to fit

The back of the strip is self-adhesive: peel off the backing and press it in place.

Control

Connect the 2510 3-pin plug to a Barrow LRC 2.0 controller such as the ARSKZQ or the DK301-16 hub, or to the 5V ARGB header of a motherboard through Barrow's adapter cable ZBDZJX-5M. An extension cable such as the YCAR-800 adds reach.

Technical data

Notes

• Keep the strip away from coolant. Barrow warns that liquid on the strip can short it and damage it beyond repair.
• The strip needs a 5V addressable controller or motherboard header; no controller is included. Do not connect it to a 12V RGB header (4 pins).
• Barrow has discontinued this strip; we sell the remaining stock.
• Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.

In the box

• 1x Barrow LRC2.0 Flexible 5V Addressable RGB Strip | 0.5M
