Details

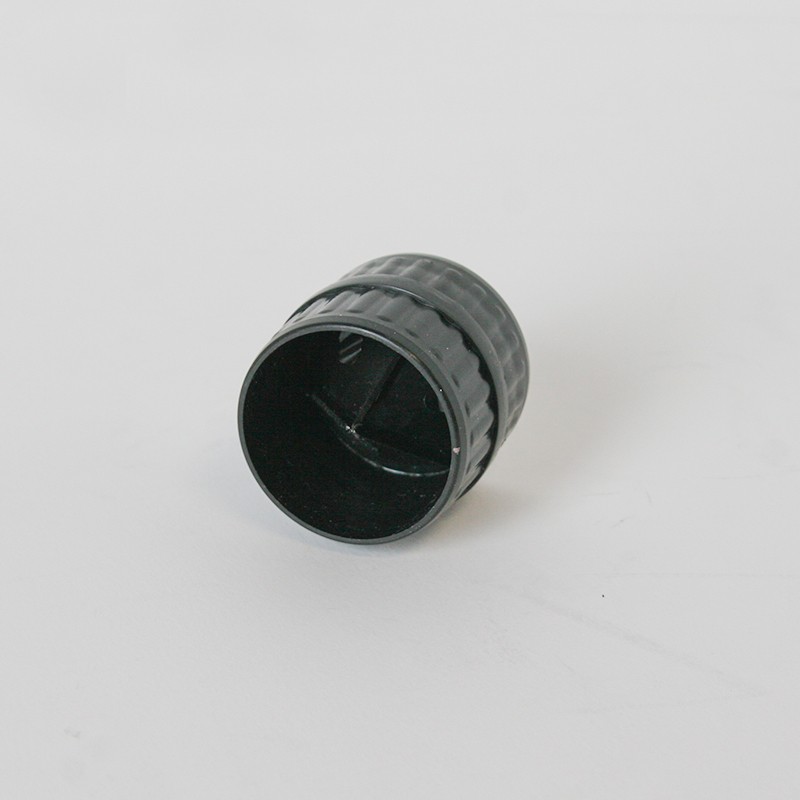

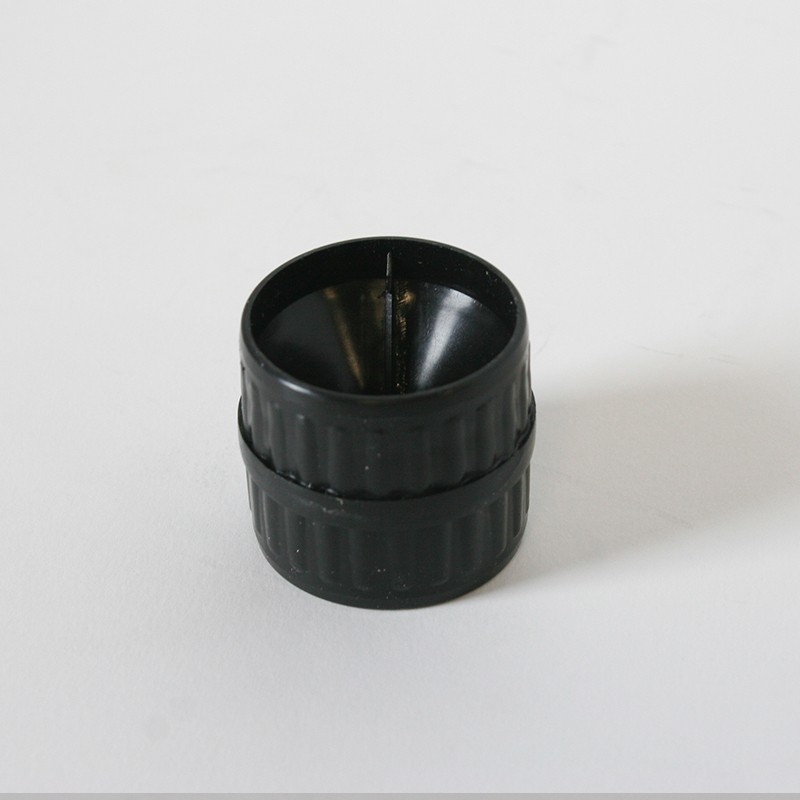

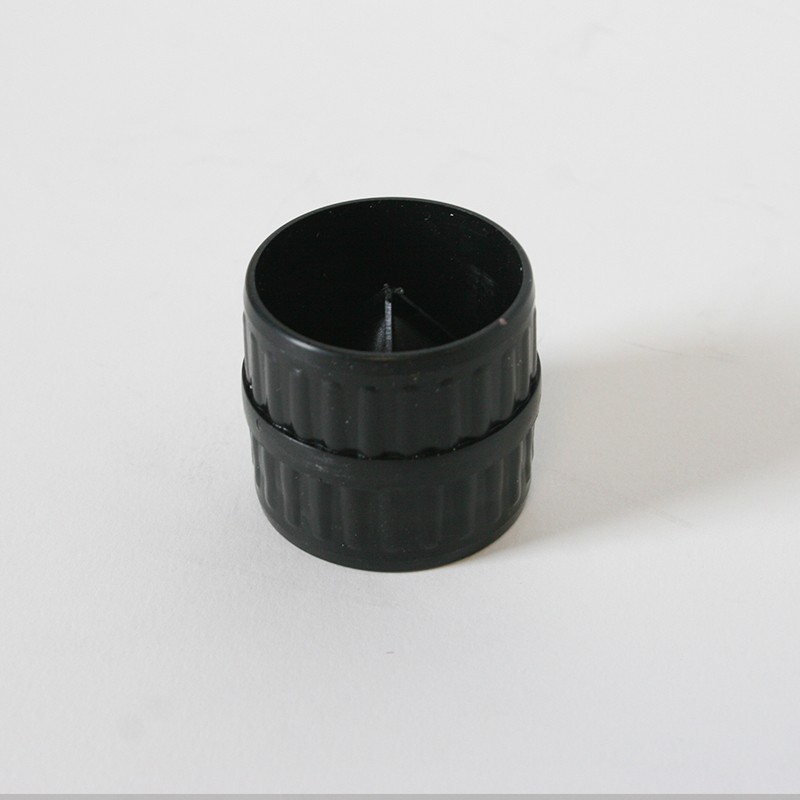

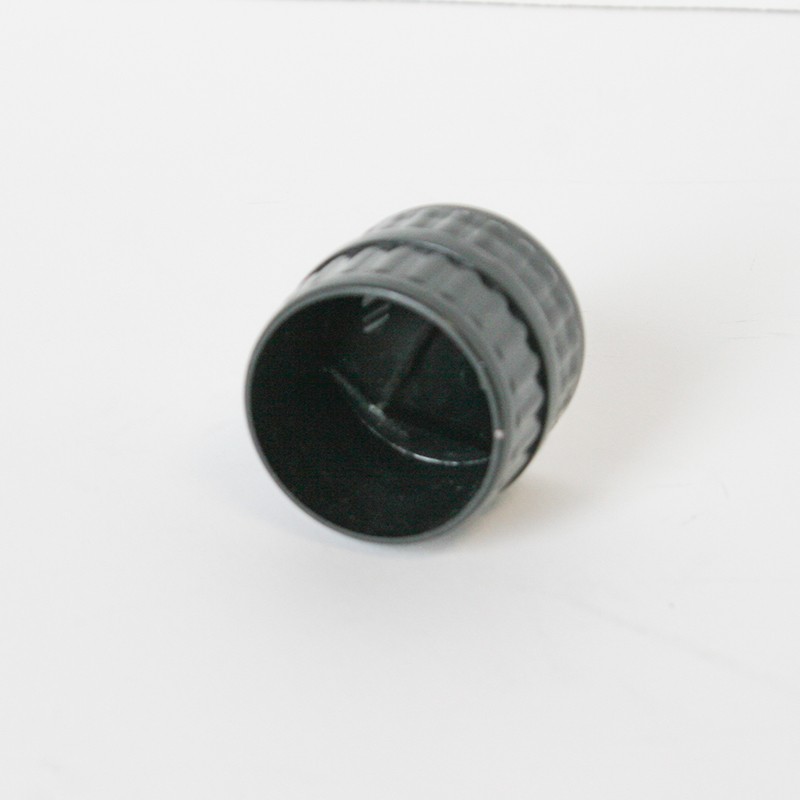

The Barrow YGJDJ-V1 is a simple hand tool for rounding off the cut ends of hard tubing. Barrow made it for the inside and outside edges of a hard tube after cutting: one end of the tool works on the inner edge, the other on the outer edge, so the tube slides into a hard tube fitting cleanly and the O-rings are not cut by a sharp edge. The black body has a deep ribbed grip.
Properties
- Type
- Hard tube chamfer tool, double-ended
- Use
- Inner and outer edge of hard tube after cutting
- Operation
- By hand, turn the tool on the tube end
- Color
- Black
- Pieces in the pack
- 1
Why the tube end matters
A cut leaves burrs and a sharp edge on hard tubing. A sharp outer edge can damage the O-rings of a hard tube fitting when you push the tube in, and burrs or chips can end up in the loop. A short turn with this tool gives a clean, rounded end.
Two ends, two jobs
Barrow marks the two ends A and B. Side A has a pointed blade for the inner edge of the tube wall; side B has a straight blade for the outer edge. Put the tube end into the tool and turn it until the edge is smooth, then blow or rinse the chips out of the tube before you fit it.
Sure grip
Deep ribs run around the whole body, so you can hold and turn the tool firmly by hand without slipping.
Technical data
| Model | YGJDJ-V1 |
| Type | Manual hard tube chamfer tool |
| Side A | Inner edge of the tube wall |
| Side B | Outer edge of the tube wall |
| Color | Black |
Notes
- The blades are sharp. Barrow asks you not to touch the embedded blades with your hands; keep the tool away from children.
- Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.
In the box
- 1x Barrow Hard Tubing Internal and External Reamer / Deburring Tool - Black
