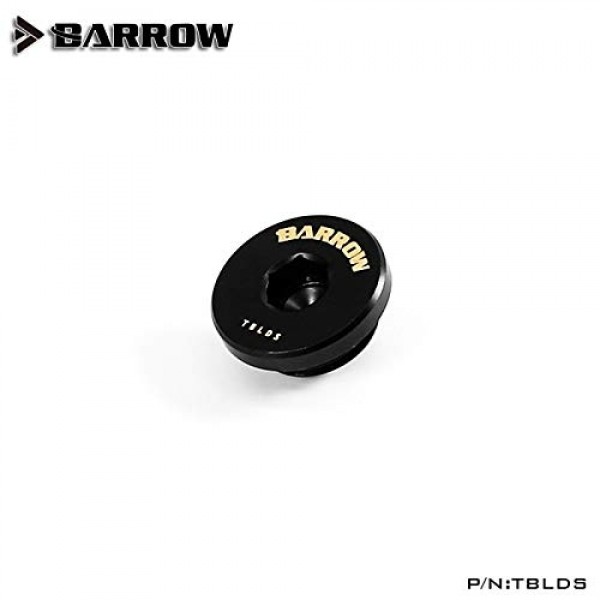

Barrow G1/4" Ultra Low Profile Hex Stop / Plug Fitting - Black (TBLDS)

The Barrow TBLDS is an ultra-thin G1/4" stop plug with an inner hex. Its head is only 2.5 mm tall, so it closes an unused G1/4" port with almost nothing standing out. The head carries the Barrow logo and is finished in black.

Properties

Type

Stop plug, low profile

Thread

G1/4" male

Head

18 mm diameter, 2.5 mm tall

Tool

6 mm hex key

Seal

O-ring

Material

H59 brass, electroplated

Color

Black

Pieces in the pack

1

Close unused ports flat

Reservoirs, blocks, radiators and distribution plates often have more G1/4" ports than a loop needs. The TBLDS closes one of them with a head just 2.5 mm tall, so it sits almost flush and does not catch the eye or get in the way of nearby parts.

Tightened with a hex key

Instead of a knurled grip the plug has a 6 mm hex socket in the head. Barrow says to tighten it with a 6 mm hex key, which also reaches plugs in tight corners where fingers do not fit.

Sealed by an O-ring

An O-ring under the head seals the plug against the port face.

H59 brass with a double-protected finish

Barrow says it uses high-quality H59 brass for the plug and protects the surface with a double electroplating process, which it says gives a fine texture that is solid and durable.

Technical data

Notes

• A 6 mm hex key is not included.
• Barrow sells this plug in black, white, shiny silver and gold. This listing is the black version.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" Ultra Low Profile Hex Stop / Plug Fitting - Black
