Details

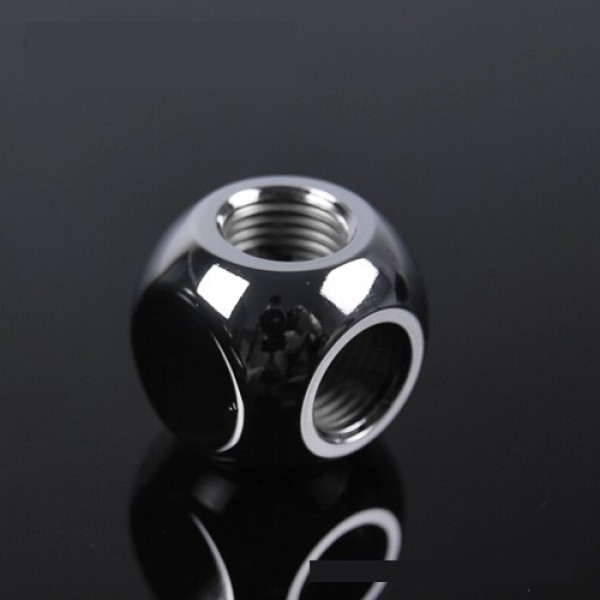

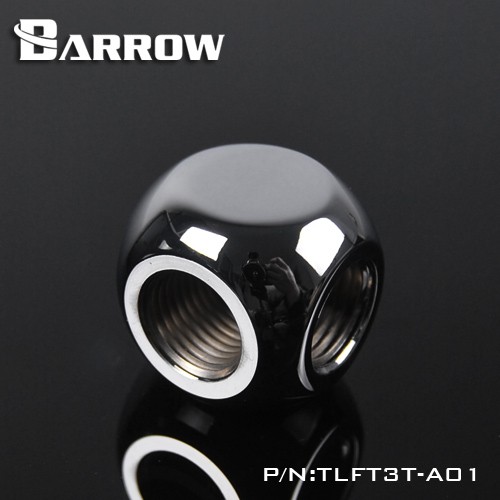

The Barrow TLFT3T-A01 is a compact 24 mm cube splitter with three G1/4" female ports, each on its own face of the cube. Barrow makes it for dividing one waterway into several or combining several into one. It is machined from H59 brass and finished in shiny silver.
Properties
- Type
- 3-way cube splitter
- Ports
- 3 x G1/4" female
- Size
- 24 x 24 mm
- Material
- H59 brass, electroplated
- Color
- Silver
- Pieces in the pack
- 1
Three ports in one small block
Three ports sit in one plane in a T: two face each other and the third points out at 90° between them. The top and the bottom of the cube are closed. Use the splitter to divide one line into several, to join several lines into one, or as a central return point in a loop. With a plug in a spare port it also makes a neat fill or drain point.
Tight corners
Because the ports point in different directions, the block can turn a line through 90° and branch it at the same time. Barrow calls it a metallic cube tee; at 24 mm across it keeps tube runs short and tidy inside the case.
Brass with a double-protected finish
Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.
Standard G1/4" ports
All ports are standard G1/4" female threads, so the splitter takes fittings, plugs, extenders and adapters from Barrow and from other makers.
Technical data
| Model | TLFT3T-A01 |
| Type | 3-way cube splitter |
| Ports | 3 x G1/4" female |
| Size | 24 x 24 mm |
| Material | H59 brass |
| Color | Silver |
Notes
- Barrow makes this splitter in black, white, shiny silver and gold. This listing is the shiny silver version.
- Fittings and plugs are not included; every port needs its own G1/4" fitting or plug.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" Thread 3-Way Block Splitter Fitting - Silver
