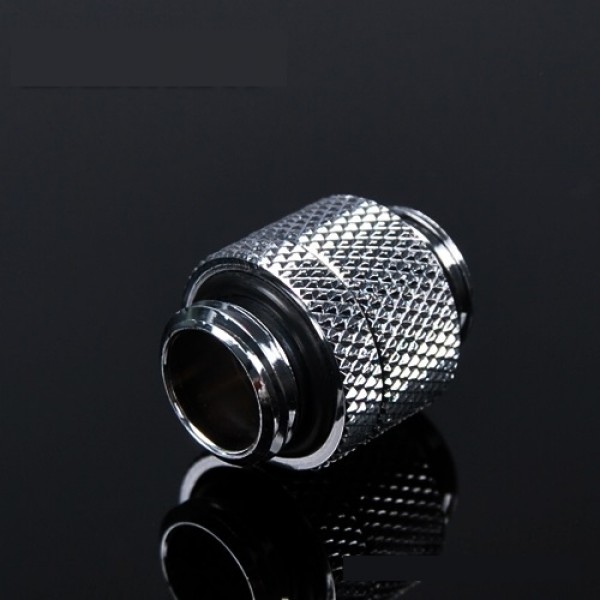

Barrow G1/4" Male to Male Anti-Twist Rotary Adapter Fitting - Silver (TBX2D-02-Silver)

The Barrow TBX2D-02 is a rotary G1/4" male to G1/4" male extender. Its two halves turn against each other, so a fitting screwed onto it can be turned to face any direction without loosening a thread. Barrow calls it a rotary dual male extender; it is finished in shiny silver.

Properties

Type

Rotary extender, male to male

Thread

G1/4" male on both ends

Rotation

360°

Size

18 mm diameter, 24 mm long overall

Material

H59 brass, electroplated

Seal

O-ring on each end

Color

Silver

Pieces in the pack

1

Point a fitting where you need it

Screw one end into a port and put any female G1/4" fitting on the other end. Because the two halves of the body turn against each other, the fitting on top can be rotated to the angle you want after it is tightened. That is useful with fixed 90° or 45° fittings, which otherwise often end up pointing the wrong way when the thread is fully tight.

No over-tightening

Without a rotary part, the only way to aim a fixed angle fitting is to tighten it further or back it off, which strains the O-ring and the port. With the TBX2D-02 you tighten the thread fully and set the direction separately.

Sealed on both sides

Each end has its own O-ring that seals against the port face.

H59 brass with a double-protected finish

Barrow says it uses high-quality H59 brass for the body and protects the surface with a double electroplating process, which it says gives a fine texture that is solid and durable.

Non-slip diamond knurling

Both halves of the body have a diamond knurl. Barrow says it gives a sure grip when you screw the extender in by hand.

Technical data

Notes

• Barrow sells this extender in black, white, shiny silver and gold. This listing is the shiny silver version.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" Male to Male Anti-Twist Rotary Adapter Fitting - Silver
