Details

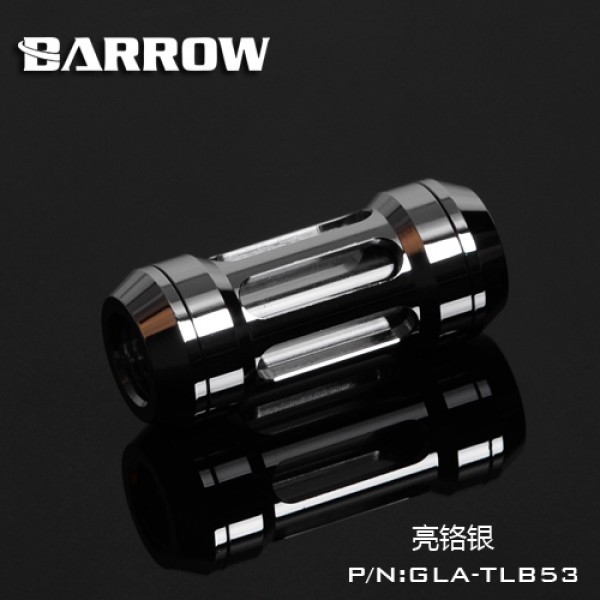

The Barrow GLA-TLB53 is an in-line filter with a quartz glass tube inside an open metal cage, so you can see the filter screen and whatever it has caught. It has a female G1/4" port at each end and goes anywhere in the tubing run. This version has a shiny silver body with shiny silver end caps.
Properties
- Type
- In-line filter
- Ports
- G1/4" female, 2 (one at each end)
- Size
- 54.6 mm long, 23 mm diameter
- Filter screen
- 120 or 150 mesh
- Material
- Brass, aluminum alloy, quartz glass
- Color
- Silver body, silver end caps
- Pieces in the pack
- 1
Catch debris before it reaches the blocks
Flux, machining chips, dust from a new radiator or bits of tubing can travel around a new loop and settle in the fine channels of a CPU or GPU block. An in-line filter catches them in one place.
See inside
The middle section is an open cage around a quartz glass tube, so you can check the screen at a glance and see when it needs cleaning.
Easy to service
The filter comes apart so the screen can be cleaned or replaced. It is taken apart and put back together with a 3/8" wrench, which is not included.
Fits any G1/4" loop
Both ends are female G1/4" ports, so a standard compression or barb fitting screws into each end.
Technical data
| Model | GLA-TLB53 |
| Type | In-line filter |
| Ports | G1/4" female | G1/4" female |
| Length | 54.6 mm |
| Diameter | 23 mm |
| Filter screen | 120 or 150 mesh |
| Material | Brass, aluminum alloy, quartz glass |
| Tool | 3/8" wrench (not included) |
| Color | Silver body, silver end caps |
Notes
- Barrow makes this filter in many body and end cap color combinations of black, white, red and shiny silver. This listing is a shiny silver body with shiny silver end caps.
- Fittings and the wrench are not included.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" In-Line Brass and Quartz Glass Filter - Silver/Silver
