Details

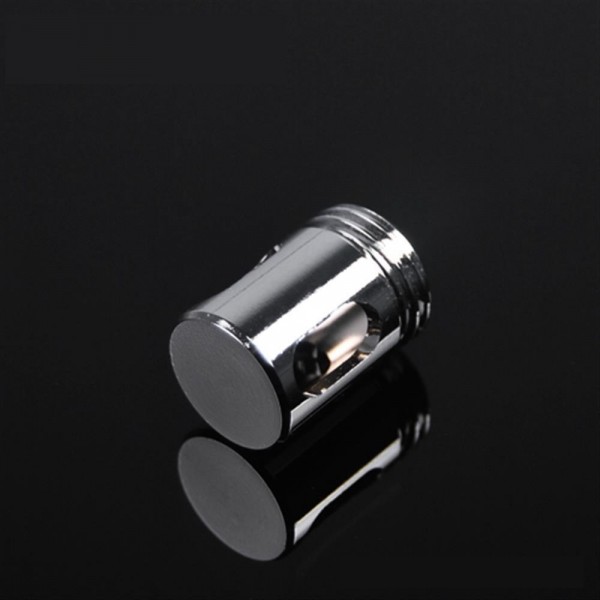

The Barrow TDSHH-V2 is a multi-stage anti-cyclone insert for reservoirs. It screws into a G1/4" port on the inside of a reservoir and, Barrow says, slows down the water flow in the tank. It is machined from H59 brass and finished in shiny silver.
Properties
- Type
- Anti-cyclone insert
- Thread
- G1/4" male
- Size
- 12.6 mm diameter, 14 mm tall plus 5 mm thread
- Material
- H59 brass, electroplated
- Color
- Silver
- Pieces in the pack
- 1
Calmer coolant in the reservoir
Barrow makes this insert for slowing down the water flow in the reservoir. The end of the body is closed, so coolant passing through the port has to go through the long slots in the side instead of straight through. That spreads the flow and keeps the coolant in the tank calmer than an open port does.
Small and easy to fit
The body is only 12.6 mm across and 14 mm tall above its 5 mm thread. Screw it by hand into a G1/4" female port inside the reservoir. Barrow describes it as stable, durable and easy to install.
Brass with a double-protected finish
Barrow machines the body from H59 brass and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.
Technical data
| Model | TDSHH-V2 |
| Type | Multi-stage anti-cyclone insert |
| Thread | G1/4" male |
| Body diameter | 12.6 mm |
| Body height | 14 mm |
| Thread length | 5 mm |
| Material | H59 brass |
| Color | Silver |
Notes
- The insert needs a G1/4" female port on the inside of the reservoir. Check your reservoir before you order.
- Barrow sells this insert in black, white and shiny silver. This listing is the shiny silver version.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" Anti-Cyclone Adapter Fitting - Silver
