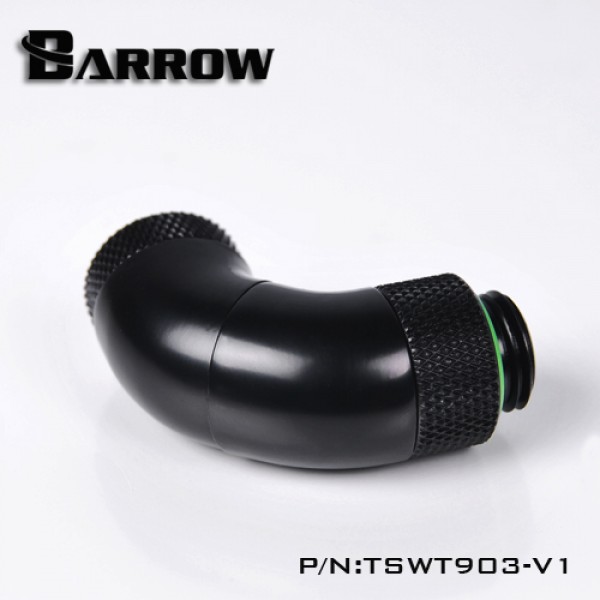

Barrow G1/4" 90 Degree Male to Female Triple Rotary Snake Adapter - Black (TSWT903-V1)

The Barrow TSWT903-V1 is a 90° snake-style rotary adapter with a G1/4" male thread on one end and a G1/4" female thread on the other. It turns at three points, so you can shape the bend to fit around parts in a tight build. It is made of H59 brass and finished in black.

Properties

Type

90° snake-style rotary adapter, male to female

Thread

G1/4" male to G1/4" female

Ports

2x G1/4"

Turning points

3

Material

H59 brass, electroplated

Color

Black

Pieces in the pack

1

A bend you can shape

Barrow makes this adapter for changing the connection direction in a water cooling loop where a straight run or a single elbow does not fit. Screw the male end into any G1/4" port, turn the segments until the female end points where your tube needs to go, and screw your tube fitting into the female end. Because the joints keep turning after the threads are tight, you can set the final shape last.

Where it turns

Barrow calls it a 3-way rotary adapter: it turns at three points. The two halves of the bend turn against each other, and the knurled collars at both ends turn as well. Barrow says the adapter gives 360° rotation.

Brass with a double-protected finish

Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

Non-slip diamond knurling

The rotating collars have a diamond knurl pattern. Barrow says it gives a sure grip when you screw the adapter in by hand.

Standard G1/4" connections

Both ends use the standard G1/4" thread of PC water cooling, so the adapter works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. The male end is sealed by an O-ring.

Technical data

Notes

• Barrow sells this adapter in black, white, shiny silver and gold. This listing is the black version.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" 90 Degree Male to Female Triple Rotary Snake Adapter - Black
