Details

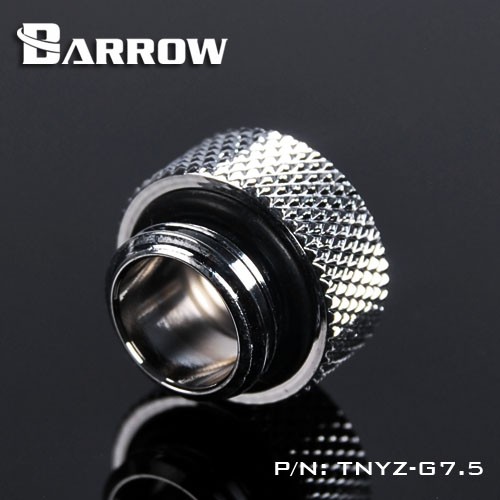

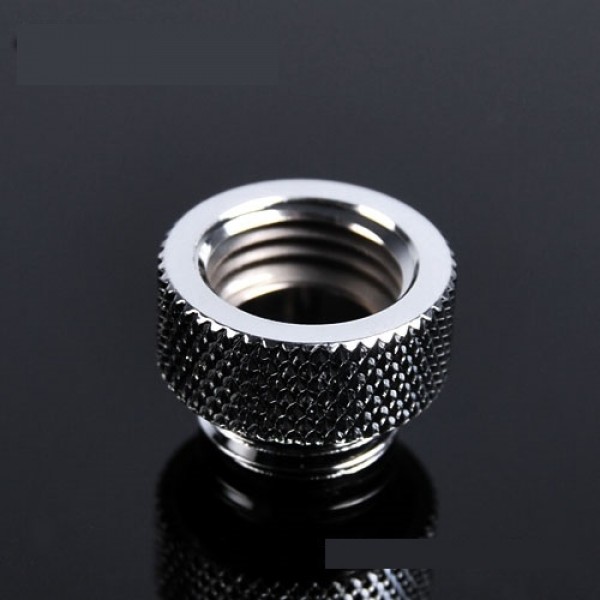

The Barrow TNYZ-G7.5 is a male to female extender for G1/4" ports. It screws into any G1/4" port and moves the connection out by 7.5 mm, with a G1/4" male thread on one end and a G1/4" female thread on the other. It is machined from H59 brass and finished in shiny silver.
Properties
- Type
- Extender, male to female
- Thread
- G1/4" male to G1/4" female
- Extension
- 7.5 mm
- Body diameter
- 18 mm
- Material
- H59 brass, electroplated
- Color
- Silver
- Pieces in the pack
- 1
Move a port out by 7.5 mm
Barrow makes this extender for connecting and extending water cooling hardware. Use it when a fitting next to the port is too wide to sit beside its neighbor, when a block, radiator or reservoir port sits too deep for a fitting to reach, or when you want to set a fitting, valve or drain further out. Screw the male end into the port and your fitting into the female end; the fitting then sits 7.5 mm further out.
Sealed by an O-ring
The male end carries an O-ring that seals against the face of the port, the same way a normal G1/4" fitting seals.
Brass with a double-protected finish
Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.
Non-slip diamond knurling
The outside has a diamond knurl pattern. Barrow says it gives a sure grip when you screw the extender in by hand.
Standard G1/4" connections
Every thread is the standard G1/4" of PC water cooling, so the extender works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own.
Technical data
| Model | TNYZ-G7.5 |
| Type | Male to female extender |
| Threads | G1/4" male | G1/4" female |
| Extension (body height) | 7.5 mm |
| Male thread length | 5 mm |
| Body diameter | 18 mm |
| Seal | O-ring on the male thread |
| Material | H59 brass |
| Color | Silver |
Notes
- Barrow makes this extender in black, white, shiny silver and gold. This listing is the shiny silver version.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" 7.5mm Male to Female Extension Fitting - Silver
