Details

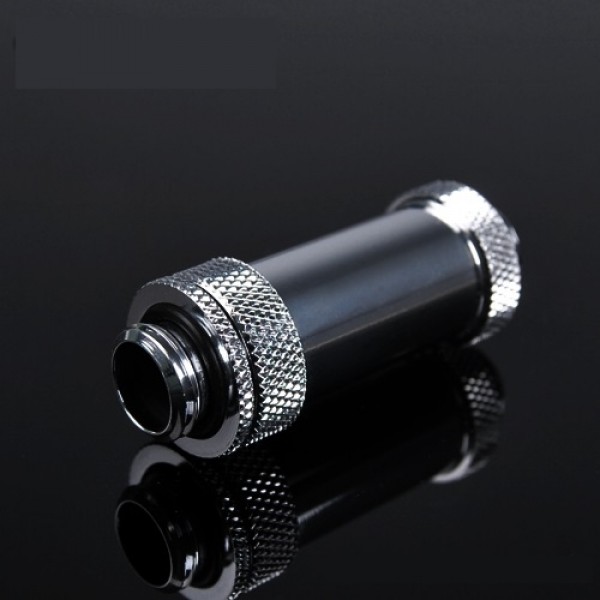

The Barrow TSSXK-B01 is an adjustable aqua link pipe with a G1/4" male thread on both ends. The body between the threads adjusts from 41 to 69 mm, so it can join two female G1/4" ports that sit straight across from each other, such as the terminals of two graphics card water blocks in an SLI or Crossfire setup. It is made of H59 brass and finished in shiny silver.
Properties
- Type
- Adjustable link pipe, male to male
- Thread
- G1/4" male to G1/4" male
- Ports
- 2x G1/4"
- Adjustable length
- 41 to 69 mm between the threads
- Material
- H59 brass, electroplated
- Color
- Silver
- Pieces in the pack
- 1
Join two ports without tubing
Barrow makes this link pipe for connecting two parts with female G1/4" threads directly, port to port, and for making the connection longer or shorter. Screw one end into each port and set the length until both threads sit home. Because the body slides between 41 and 69 mm, it takes up spacing that a fixed-length extender cannot.
Brass with a double-protected finish
Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.
Non-slip diamond knurling
The rings have a diamond knurl pattern. Barrow says it gives a sure grip when you screw the link pipe in by hand.
Standard G1/4" connections
Both ends use the standard G1/4" thread of PC water cooling, so the link pipe works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. Each male end is sealed by an O-ring.
Technical data
| Model | TSSXK-B01 |
| Type | Adjustable aqua link pipe, male to male |
| Threads | G1/4" male | G1/4" male |
| Length between the threads | 41 to 69 mm |
| Thread length | 5 mm each end |
| Ring diameter | 20 mm |
| Material | H59 brass |
| Color | Silver |
Notes
- Barrow sells this link pipe in black, white, shiny silver and gold. This listing is the shiny silver version.
- Barrow makes the link pipe in three lengths: 16 to 22 mm (TSSXK-S01), 22 to 31 mm (TSSXK-A01) and 41 to 69 mm (TSSXK-B01).
- Check the distance between the two ports before you order: measure from port face to port face and pick the size whose range covers it.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" 41-69mm Adjustable SLI / Crossfire Connector - Silver
