Details

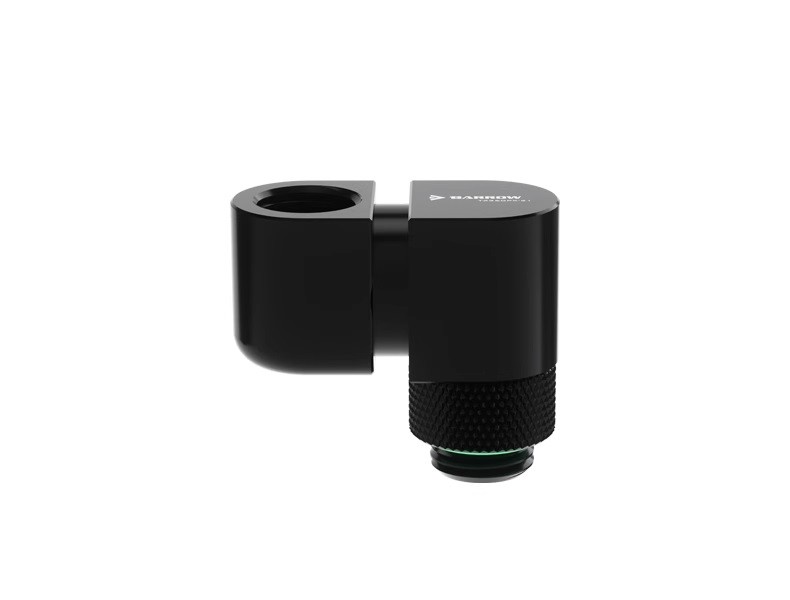

The Barrow TX360PX-21 is a rotary offset adapter with a G1/4" male thread on the bottom and a G1/4" female port 21 mm to the side. The body turns through a full 360° on the male thread, and the head that carries the female port turns on its own joint, so the port can face up, to the front, to the back or anywhere in between. It is machined from H59 brass and finished in black.
Properties
- Type
- Rotary offset adapter, male to female
- Thread
- G1/4" male to G1/4" female
- Offset
- 21 mm
- Rotation
- 360° at the base, turning head
- Material
- H59 brass, electroplated
- Color
- Black
- Pieces in the pack
- 1
Move the port 21 mm and point it where you need

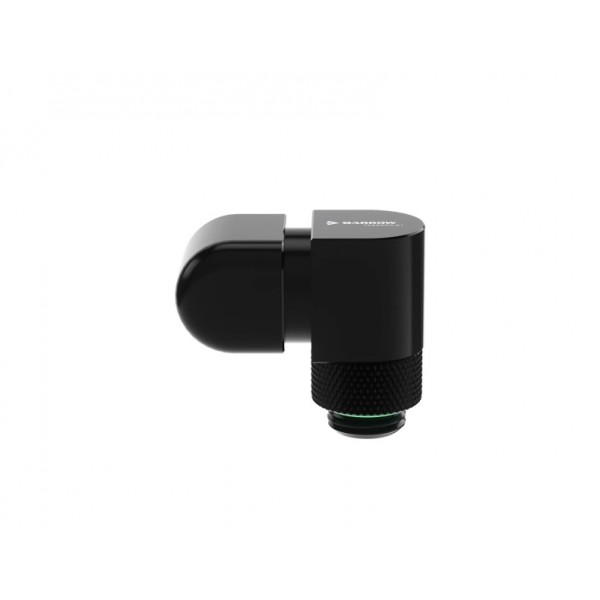

Screw the male end into a G1/4" port and turn the body: the female port swings around the male thread on a circle with a 21 mm radius. The head carrying the female port turns as well, so the port can point up, parallel to the male thread, or be turned to face the front or the back for a right-angle exit. Barrow shows the head in several of these positions.
Offset, but not just offset
Barrow calls the two turning joints an all-in-one design: it says the adapter can work as an extension, a 45° or 90° angle, or an offset joint. It is rated for correcting a port deviation of up to 21 mm.
Brass with a double-protected finish
Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.
Non-slip diamond knurling
The rotating collar has a diamond knurl pattern. Barrow says it gives a sure grip when you screw the adapter in by hand.
Standard G1/4" connections
Both ends use the standard G1/4" thread of PC water cooling, so the adapter works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. The male end is sealed by an O-ring.
Technical data
| Model | TX360PX-21 |
| Type | Rotary offset adapter, male to female |
| Threads | G1/4" male | G1/4" female |
| Offset between port centers | 21 mm |
| Possible rotation | 360° at the base |
| Length | 39.5 mm |
| Width | 18.5 mm |
| Body height | 20.3 mm |
| Height without male thread | 29.3 mm |
| Material | H59 brass |
| Color | Black |
Notes
- Barrow gives no rotation range for the head and no length for the male thread.
- For smaller offsets, see the Barrow TX360PZ (6 mm) and TX360PZ-15-V2 (15 mm).
- Barrow sells this adapter in black and shiny silver. This listing is the black version.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" 360° Rotary 21mm Offset Adapter Fitting - Black
