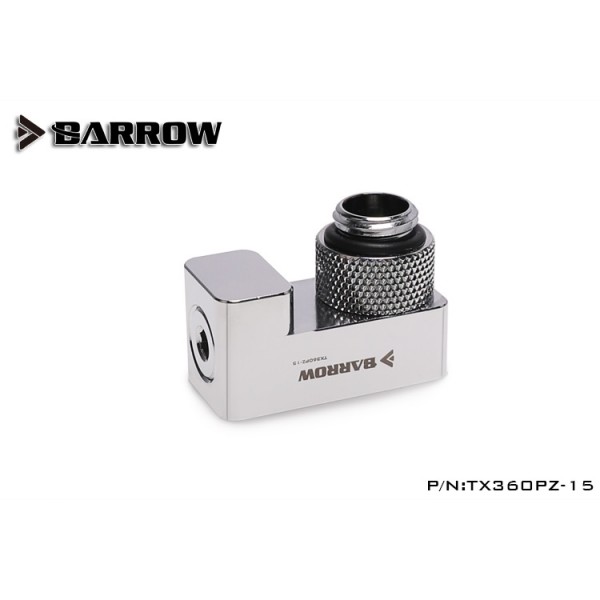

Barrow G1/4" 360° Rotary 15mm Offset Adapter Fitting - Silver (TX360PZ-15-Silver)

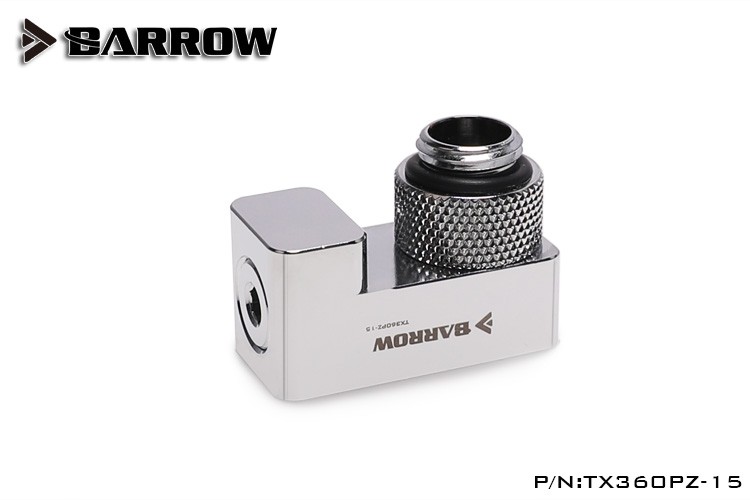

The Barrow TX360PZ-15 is a rotary offset adapter with a G1/4" male thread on the bottom and a G1/4" female thread on top. The female port sits 15 mm off the axis of the male thread, and the body turns through a full 360°, so you can move the port by up to 15 mm in any direction. It is machined from H59 brass and finished in shiny silver.

Properties

Type

Rotary offset adapter, male to female

Thread

G1/4" male to G1/4" female

Offset

15 mm

Rotation

360°

Material

H59 brass, electroplated

Color

Silver

Pieces in the pack

1

Line up tube runs that do not quite meet

An offset adapter moves the port sideways instead of turning it. Screw the male end into a G1/4" port and turn the body: the female port swings around the male thread on a circle with a 15 mm radius, so it can sit anywhere up to 15 mm away from the original port center. That is enough to bring two hard tube runs into a straight line, or to move a fitting clear of a nearby part, without bending the tube. Barrow rates it for correcting a port deviation of up to 15 mm.

Brass with a double-protected finish

Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

Non-slip diamond knurling

The rotating collar has a diamond knurl pattern. Barrow says it gives a sure grip when you screw the adapter in by hand.

Standard G1/4" connections

Both ends use the standard G1/4" thread of PC water cooling, so the adapter works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own. The male end is sealed by an O-ring.

Technical data

Notes

• This is the first version of the 15 mm offset adapter with a squared body. Barrow now sells the rounded TX360PZ-15 V2 in its place.
• For other offsets, see the Barrow TX360PZ (6 mm) and TX360PX-21 (21 mm).
• Barrow lists this first version in black and shiny silver. This listing is the shiny silver version.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" 360° Rotary 15mm Offset Adapter Fitting - Silver
