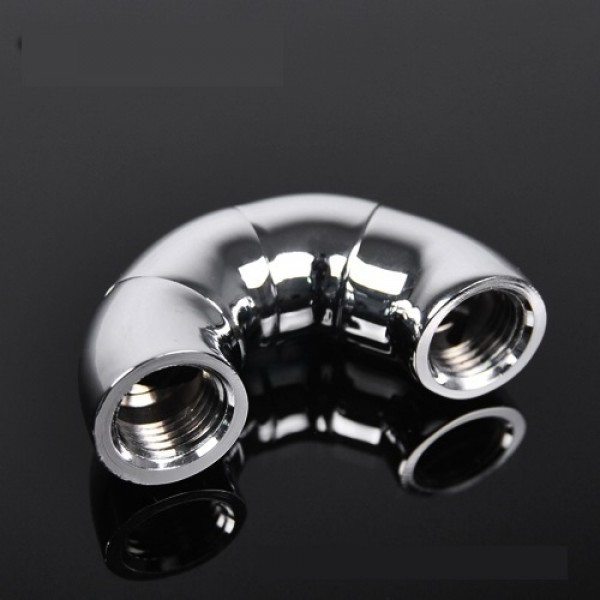

Barrow G1/4" 180 Degree Female to Female Triple Rotary Snake Adapter - Silver (TSWT1803-V1-Silver)

The Barrow TSNW1803-V1 is a 180° snake-style rotary adapter with a G1/4" female thread on both ends. It turns at three points, so you can shape the bend to fit around parts in a tight build. It is made of H59 brass and finished in shiny silver.

Properties

Type

180° snake-style rotary adapter, female to female

Thread

G1/4" female to G1/4" female

Ports

2x G1/4"

Turning points

3

Material

H59 brass, electroplated

Color

Silver

Pieces in the pack

1

A bend you can shape

Barrow makes this adapter for changing the connection direction in a water cooling loop where a straight run or a single elbow does not fit. Screw a G1/4" male fitting or extender into each end, then turn the segments until both ports line up with your tubing or with the parts you are joining. Because the joints keep turning after the threads are tight, you can set the final shape last.

Where it turns

Barrow calls it a 3-way rotary adapter: it turns at three points. The four segments of the bend each turn against the next. Barrow says the adapter gives 360° rotation.

Brass with a double-protected finish

Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

Standard G1/4" connections

Both ends use the standard G1/4" thread of PC water cooling, so the adapter works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own.

Technical data

Notes

• Barrow sells this adapter in black, white and shiny silver. This listing is the shiny silver version.
• Barrow sells this part as model TSNW1803-V1; our item number is TSWT1803-V1.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" 180 Degree Female to Female Triple Rotary Snake Adapter - Silver
