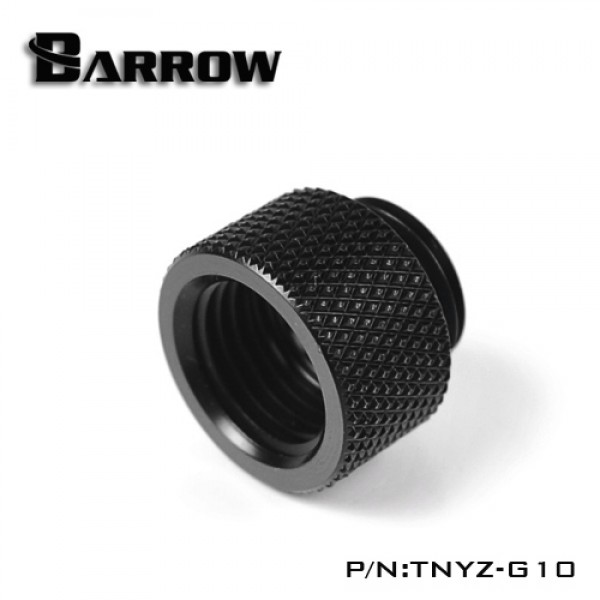

Barrow G1/4" 10mm Male to Female Extension Fitting - Black (TNYZ-G10)

The Barrow TNYZ-G10 is a male to female extender for G1/4" ports. It screws into any G1/4" port and moves the connection out by 10 mm, with a G1/4" male thread on one end and a G1/4" female thread on the other. It is machined from H59 brass and finished in black.

Properties

Type

Extender, male to female

Thread

G1/4" male to G1/4" female

Extension

10 mm

Body diameter

18 mm

Material

H59 brass, electroplated

Color

Black

Pieces in the pack

1

Move a port out by 10 mm

Barrow makes this extender for connecting and extending water cooling hardware. Use it when a fitting next to the port is too wide to sit beside its neighbor, when a block, radiator or reservoir port sits too deep for a fitting to reach, or when you want to set a fitting, valve or drain further out. Screw the male end into the port and your fitting into the female end; the fitting then sits 10 mm further out.

Sealed by an O-ring

The male end carries an O-ring that seals against the face of the port, the same way a normal G1/4" fitting seals.

Brass with a double-protected finish

Barrow uses H59 brass for the body and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.

Non-slip diamond knurling

The outside has a diamond knurl pattern. Barrow says it gives a sure grip when you screw the extender in by hand.

Standard G1/4" connections

Every thread is the standard G1/4" of PC water cooling, so the extender works with blocks, radiators, reservoirs and fittings from other makers as well as Barrow's own.

Technical data

Notes

• Barrow makes this extender in black, white, shiny silver and gold. This listing is the black version.
• Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.

In the box

• 1x Barrow G1/4" 10mm Male to Female Extension Fitting - Black
