Details

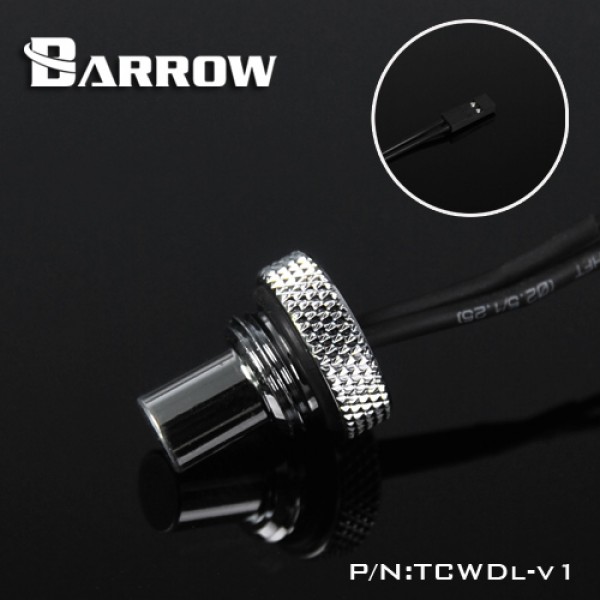

The Barrow TCWDL-V1 is a G1/4" stop plug with a built-in 10K temperature sensor. It closes a free port of your loop and measures the coolant temperature at the same time. This is the lengthened version: the sensor tip reaches 10 mm past the thread, deeper into the coolant flow. The plug is machined from H59 brass and finished in shiny silver.
Properties
- Type
- Stop plug with temperature sensor, lengthened
- Sensor
- 10K
- Thread
- G1/4" male
- Depth below the head
- 15 mm (5 mm thread + 10 mm sensor tip)
- Material
- H59 brass, electroplated
- Color
- Silver
- Pieces in the pack
- 1
Coolant temperature at a glance
The sensor sits in the tip of the plug, in the coolant itself, so it reads the water temperature rather than the air in the case. Barrow makes it for measuring the temperature of the coolant in a water cooling system. Connect the cable to a fan controller, a motherboard temperature header or another monitor that takes a 10K sensor, and you can run fans or pumps on the coolant temperature.
Fits any free G1/4" port
The plug screws into any free G1/4" female port of a block, radiator, reservoir or fitting, like an ordinary stop plug. An O-ring under the head seals it, and the knurled head is tightened by hand.
Brass with a double-protected finish
Barrow machines the body from H59 brass and protects the surface with what it calls a double electroplating process, which it says gives a fine texture that is solid and durable.
Non-slip diamond knurling
The outside carries a diamond knurl pattern. Barrow says it gives a sure grip when you screw the part in by hand.
Standard or lengthened
Barrow makes this plug in two lengths. The standard TCWD-V1 reaches 8 mm below the head. This lengthened TCWDL-V1 reaches 15 mm below the head, so the sensor tip sits deeper in the coolant flow. Check that the port you use has 15 mm of free depth behind it.
Technical data
| Model | TCWDL-V1 |
| Type | Temperature sensor stop plug, lengthened |
| Sensor | 10K |
| Thread | G1/4" male |
| Head diameter | 18 mm |
| Head height | 5 mm |
| Thread length | 5 mm |
| Sensor tip length | 10 mm |
| Total height | 20 mm |
| Material | H59 brass |
| Color | Silver |
Notes
- The cable ends in a 2-pin plug for 10K sensor inputs.
- Barrow sells this plug in black, white, shiny silver and gold. This listing is the shiny silver version.
- Barrow notes that it may update the look or construction of the part without notice; the part you receive is the current version.
In the box
- 1x Barrow G1/4" 10K Temperature Stop / Plug Fitting - Long Version - Silver
