Details

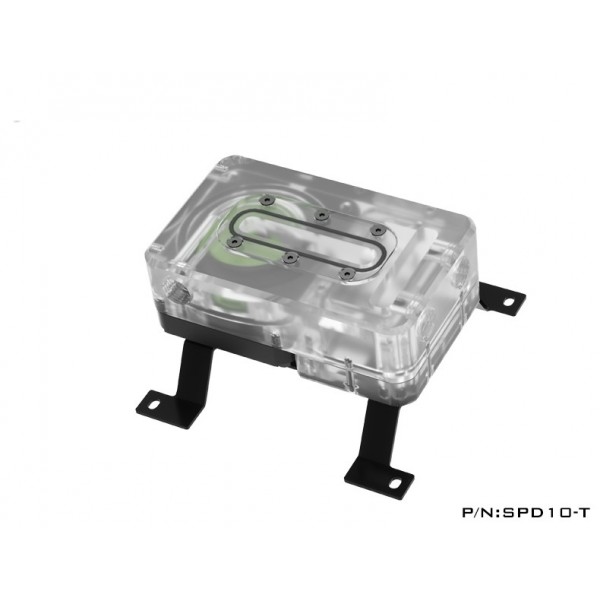

The Barrow SPD10-T puts a pump and a reservoir in one compact unit for small builds: a 10 W, 12V PWM pump in a CNC-machined black aluminum housing, joined to a clear acrylic reservoir. It measures 112.4 x 69.6 x 40 mm, small enough for an ITX case, and has three G1/4" ports.
Properties
- Pump
- 10 W, DC 12V, PWM
- Maximum flow
- 450 L/h
- Maximum head
- 3 m
- Ports
- 3x G1/4" (2 on top, 1 on the side)
- Size
- 112.4 x 69.6 x 40 mm
- Material
- Aluminum alloy pump housing, acrylic reservoir
- Color
- Black
- Pieces in the pack
- 1 set
Small enough for ITX
Barrow designed the SPD10-T to fit inside ITX cases while still holding enough coolant for the loop. Pump and reservoir are one piece, so the unit takes the space of a single small block.
Aluminum pump housing
The pump sits in a housing machined from aluminum alloy on a CNC machine, with a closed heat sink structure. Barrow says it carries the heat of the pump away while it runs, which keeps the pump stable over long use and extends its service life.
Speed control from the motherboard
The pump speed is set by the motherboard only. Connect the PWM cable to the matching header on the motherboard before use and set the working mode of that header in the BIOS.
Before you fill it
- Never run the pump dry. Barrow warns that this causes damage that cannot be repaired.
- Mount the unit with the pump inlet facing up, so the coolant flows into the pump by gravity. Do not install it with the inlet facing down.
- Find the inlet and the outlet before you connect the tubes.
Mounting
The unit has threaded mounting holes on the back and the bottom; Barrow's drawing shows them 45 x 31.6 mm and 50 x 16.8 mm apart. Barrow's arch-shaped bracket fixes it to the case and is sold separately.
Technical data
| Model | SPD10-T |
| Rated voltage | DC 12V |
| Rated current | 0.8 A |
| Rated power | 10 W |
| Maximum speed | 4000 RPM |
| Maximum flow | 450 L/h |
| Maximum head | 3 m |
| Noise | Below 50 dB |
| Temperature range | Below 60°C |
| Speed control | PWM, from the motherboard |
| Threads | G1/4" |
| Ports | 3 |
| Dimensions | 112.4 x 69.6 x 40 mm |
| Weight | 280 g |
| Service life | Over 20,000 hours (Barrow) |
| Material | Aluminum alloy, acrylic |
| Color | Black |
Notes
- The mounting bracket is not included.
- This listing is the black version.
- Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.
In the box
- 1x Barrow DC12V 10W PWM Mini Pump/Reservoir Combo
