Details

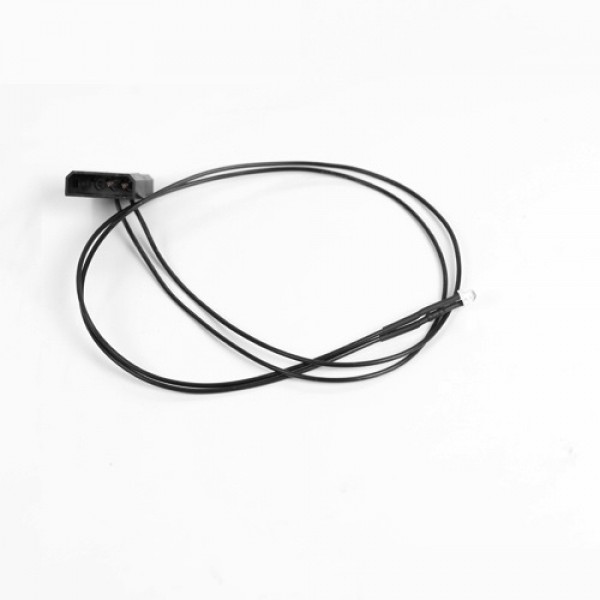

The Barrow LDDS5 is a single 5 mm LED on a 50 cm cable with a 4-pin Molex plug. It adds a spot of accent light exactly where you want it, and it fits the 5 mm LED holes that many acrylic blocks, reservoirs and pump tops have. This listing is the rose (magenta pink) version.
Properties
- Type
- Single 5 mm LED with cable
- Light color
- Rose (magenta pink)
- Power
- 12V from a 4-pin Molex plug
- Cable length
- 50 cm
- Pieces in the pack
- 1
Light where you need it

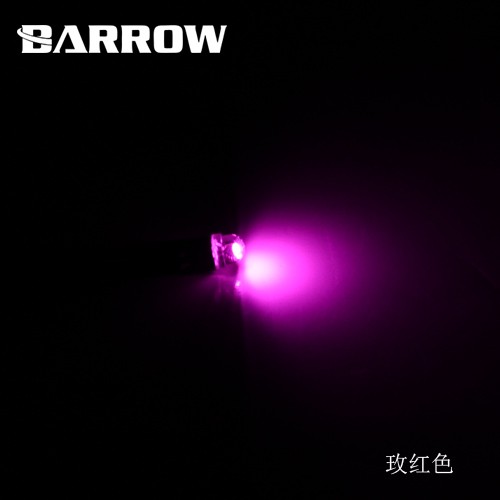

Push the LED into a 5 mm LED hole of an acrylic block, reservoir or pump top, or fix it anywhere in the case, and connect the Molex plug to the power supply. The LED lights as soon as the PC is on; there is nothing to control or set up.
The LED head
Barrow's drawings for the LDDS5 show a lens 4.8 mm across on a collar of 5.6 to 5.8 mm, so the head slides into standard 5 mm LED holes.
Technical data
| Model | LDDS5 |
| Type | 5 mm LED with cable |
| Light color | Rose |
| Voltage | 12V |
| Connector | 4-pin Molex |
| Cable length | 50 cm |
| Lens diameter | 4.8 mm |
Notes
- Barrow shows two head shapes for the LDDS5 in its drawings, a tall round lens (8 mm) and a short flat lens (3.5 mm).
- The LED is a single color; it is not RGB and cannot be dimmed or switched by software.
In the box
- 1x Barrow 5mm Tailed LED 4Pin Molex - Rose
