Details

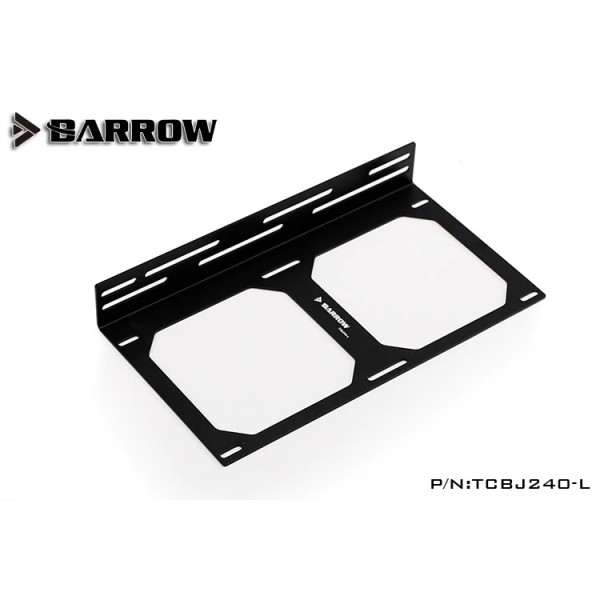

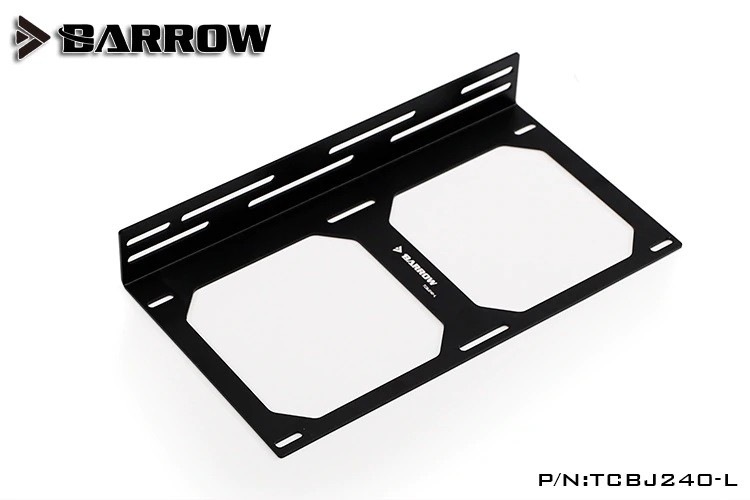

The Barrow TCBJ240-L is a black L-shaped bracket for a 240 mm radiator. The flat face screws to the radiator through its fan openings, and the folded leg screws to the case or another surface, so you can mount a 240 mm radiator inside or outside the PC where no fan holes are available.
Properties
- Type
- L bracket for a 240 mm radiator (2x 120 mm fans)
- Size
- 243.5 x 131.5 x 35 mm
- Plate thickness
- 2 mm
- Material
- Aluminum alloy
- Color
- Black
- Pieces in the pack
- 1
Mount a radiator anywhere

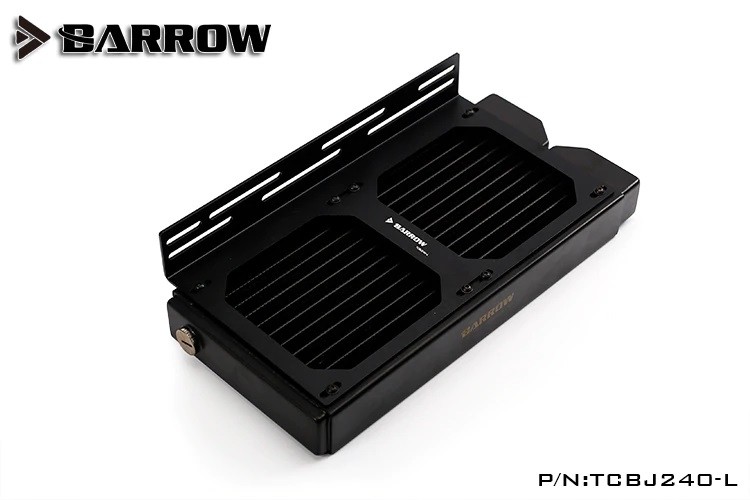

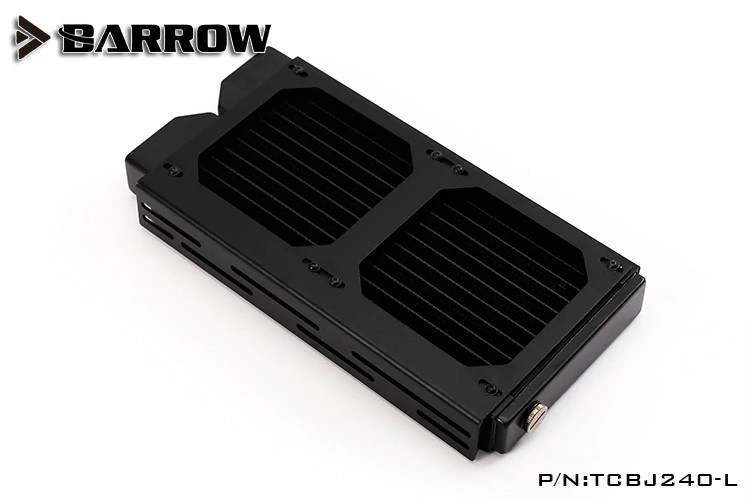

Barrow sells this bracket as an external mounting bracket for radiators and fans. The radiator screws to the large face, and the 35 mm leg is bolted to the case or another flat surface. Barrow says this moves the radiator to the outside of the case, which can improve the cooling of the whole computer, and lets you change the direction in which the radiator exhausts. Barrow's pictures show a 240 mm radiator held in the bracket.
Open fan windows
The face has 2 large openings, one for each 120 mm fan, so air passes straight through the bracket and the radiator. Slots along the edges of the face take the radiator screws.

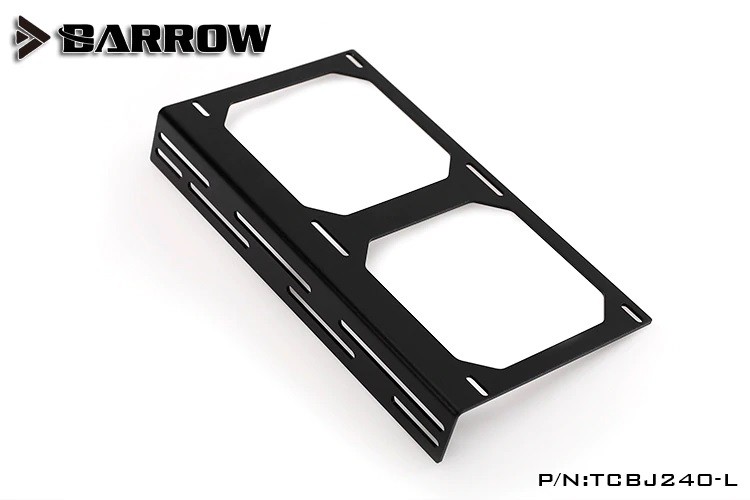

Slotted leg
The folded leg is slotted along its full length, so the bracket can slide to the position you want before you tighten the screws.

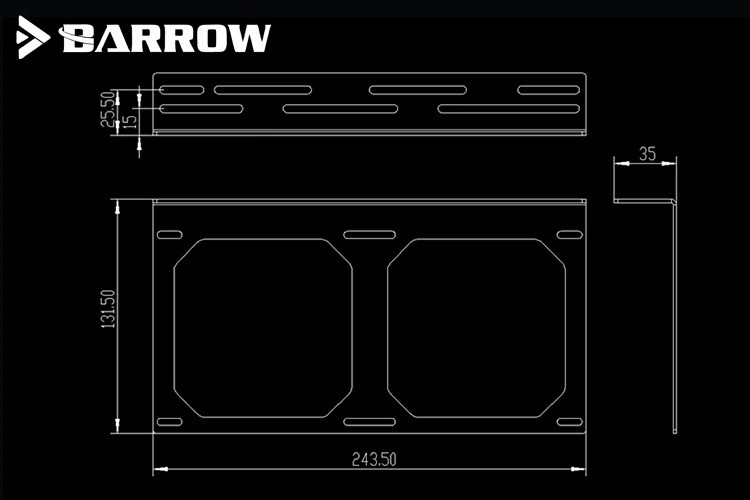

Technical data
| Model | TCBJ240-L |
| Type | Radiator L bracket, 240 mm |
| Dimensions (L x W x H) | 243.5 x 131.5 x 35 mm |
| Plate thickness | 2 mm |
| Fan openings | 2x 120 mm |
| Material | Aluminum alloy |
| Color | Black |
Notes
- The radiator in Barrow's pictures is for display only and is sold separately.
- Barrow makes this bracket for 240 mm (TCBJ240-L) and 360 mm (TCBJ360-L) radiators. This listing is the 240 mm version.
- Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.
In the box
- 1x Barrow 240mm Radiator "L" Bracket
