Details

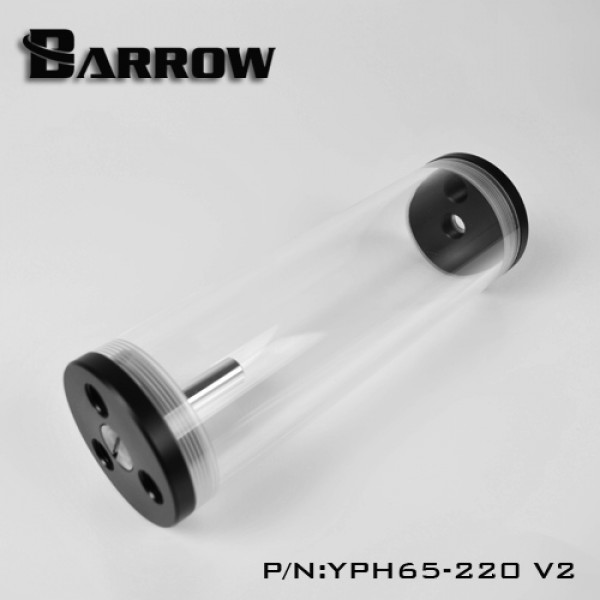

The Barrow YPH65-220 V2 is a tube reservoir with a 65 mm clear acrylic body and black acetal (POM) end caps, about 215 mm long. It has six G1/4" ports, four in the top cap and two in the bottom cap, and comes with two ways to mount it: nylon snap-fit clamps or L-shaped metal brackets.
Properties
- Type
- Tube reservoir
- Diameter
- 65 mm body, 66 mm caps
- Length
- About 215 mm
- Ports
- 6x G1/4" (4 in the top cap, 2 in the bottom cap)
- Material
- Acrylic body, acetal (POM) caps
- Color
- Black
- Pieces in the pack
- 1 set
Six ports in two caps
The top cap has four G1/4" ports and the bottom cap two, so you can place the inlet, the outlet, a fill port and a drain where they suit your loop. A riser tube is fitted inside the body. Close every port you do not use with a G1/4" stop plug.
Acrylic body, acetal caps
The body is clear acrylic, 65 mm across, so you can see the coolant level and color at a glance. The caps are black acetal (POM), 66 mm across.
Two ways to mount
Barrow includes two nylon snap-fit clamps and two L-shaped metal brackets, so you can choose how the reservoir sits in your case.
Four lengths
The YPH65 V2 comes in four lengths. Barrow gives the measured lengths as 93 mm (YPH65-98 V2), 130 mm (YPH65-135 V2), 215 mm (YPH65-220 V2) and 295 mm (YPH65-300 V2). It notes that these are hand measurements that may differ slightly, so allow a little room when you plan the space.
Technical data
| Model | YPH65-220 V2 |
| Type | Tube reservoir |
| Body diameter | 65 mm |
| Cap diameter | 66 mm |
| Length | About 215 mm |
| Threads | G1/4" |
| Ports | 6 (4 top, 2 bottom) |
| Material | Acrylic, acetal (POM) |
| Color | Black |
Notes
- The 220 in the model name is the size class; Barrow's measured length is about 215 mm.
- Barrow sells the YPH65 V2 with black or white caps. This listing is the black version.
- Barrow notes that it may update the look or construction of the product without notice; the product you receive is the current version.
In the box
- 1x Barrow 220mm Transparent Multiport Reservoir - Acrylic/Acetal - Black
- 2x Nylon snap-fit clamp
- 2x L-shaped metal bracket
