Details

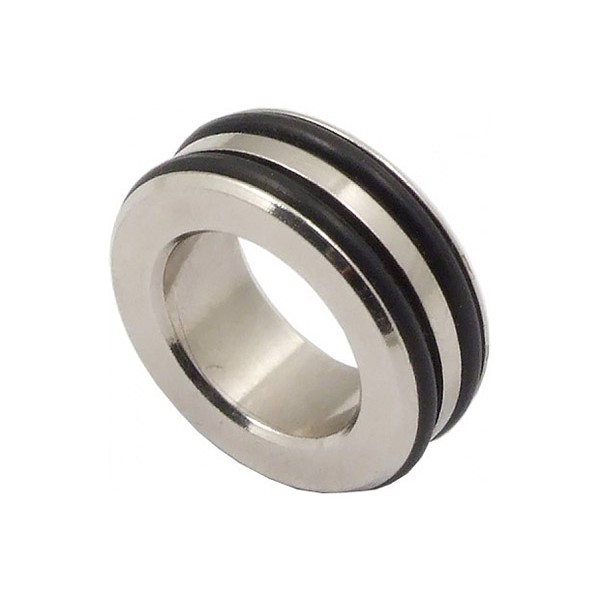

The Aquacomputer Side or Horizontal Connector for Airplex Modularity System (33501) is a radiator connector made from nickel plated brass and equipped with two O-ring gaskets. It allows side-by-side connection of radiators from the airplex modularity system, or stacking them horizontally ("horizontal stacking").
Properties
- For
- Radiators of the airplex modularity system
- Pieces
- One connector with gaskets
- Size
- Diameter 18.8 mm, height 7 mm
- Material
- Nickel plated brass, two O-ring gaskets
How it fits
The connector is inserted into any of the connection openings (ports) on the radiators, without the need for tools. Once two radiators sit on it, they are connected flush to each other. A multitude of configurations and sizes can be realized this way, simply by connecting multiple radiators with this system.
What a run needs
The connector alone does not lock the radiators together. It is secured by the radiator being screwed to separately available connection plates, which are not included: the side-by-side interconnection plates (33503) or the horizontally stacked interconnection plates (33504). The connector fits the radiators of the airplex modularity range, such as the airplex modularity 360 mm copper radiator (33036).
