Details
The Aquacomputer Screw Set with Mechanical Stop for Cuplex Kryos PRO/XT/HF is the CPU block mounting set for a cuplex kryos PRO, XT or HF water block on Socket 1366/1156/1155/1150 or Socket AM3/AM2. It is not compatible with any cuplex kryos Delrin or with the Socket 2011 versions.
Properties
- For
- cuplex kryos PRO, XT, HF
- Sockets
- 1366/1156/1155/1150, AM3/AM2
- Pieces
- four metal spacers, four knurled head screws, four springs, eight plastic washers, eight M4 screws
- Thread
- M4
With or without a backplate
It is the same screw set as the one in the delivery of the corresponding cuplex kryos water blocks. The set is suitable for use with or without a backplate. Without one, the four M4 x 6 mm screws hold the block; with back plate 21573/21574 you switch to the four M4 x 12 mm screws.
What the build needs
The backplate is not included. Backplates and other mounting parts are in our brackets and backplates section.

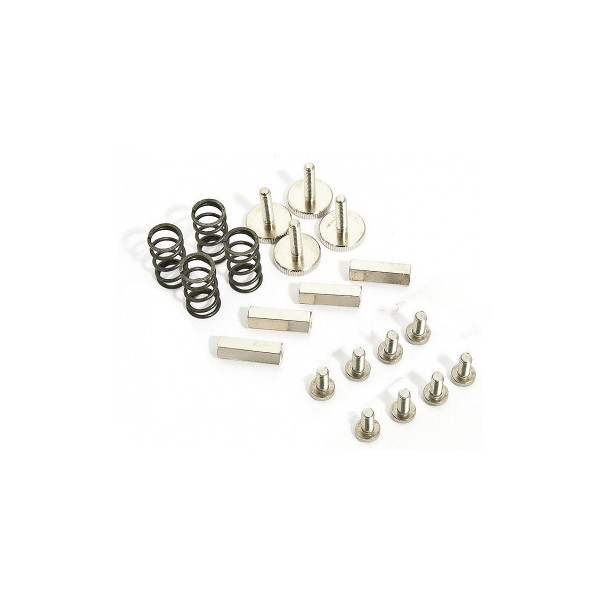

In the box
- Four metal spacers with M4 inner thread
- Four knurled head screws
- Four Springs
- Eight plastic washers
- Four M4 x 6 mm screws (for use without back plate), four M4 x 12 mm screws (for use with back plate 21573/21574)
