Details
The Aquacomputer Screw Kit Socket 2011/2066 for All Cuplex Kryos, Cuplex XT/XT Di, Cuplex Hd, Cuplex Evo is a CPU block mounting kit with M4 threaded bolts for a socket 2011/2066 mainboard. Every cuplex kryos, cuplex XT, cuplex XT di, cuplex hd or cuplex evo water block can be mounted with it, but only if the block is also compatible with socket 1366 mainboards.
Properties
- For
- cuplex kryos HF/XT/PRO/Delrin, cuplex XT, cuplex XT di, cuplex hd, rebuilt cuplex evo (socket 1366 versions)
- Socket
- 2011/2066
- Pieces
- 4 threaded bolts, 4 hex nuts, 4 springs, 4 knurled nuts
- Thread
- M4, bolts M4x30
How it mounts
To achieve the fit, the four threaded sockets around the processor are each equipped with one of the suitable threaded bolts (headless screws). Each bolt is then fixated with a hex nut put to use as a counter-nut. After this, you put the existing water block on the processor, over these bolts, and hold it down with the springs and knurled nuts. Bolts and nuts are both included, as are the springs.
What the build needs
The kit holds a block you already own, so the water block itself is not part of it. Other mounting parts are in our mounting hardware section.
Compatibility
Aquacomputer lists these compatible products by manufacturer item no.:
- cuplex kryos: Art. 21552, 21553, 21554, 21558, 21560, 21562, 21564, 21565, 21571
- cuplex XT di: Art. 21542, 21546, 21548, 21549
- cuplex hd: Art. 21541
- cuplex evo: all cuplex evo water blocks equipped with conversion kit no. 21149 or 21156
Note that the cuplex kryos blocks also carry Aquatuning item numbers, which are 10373, 10374, 10372, 10376, 10378 and 10380.

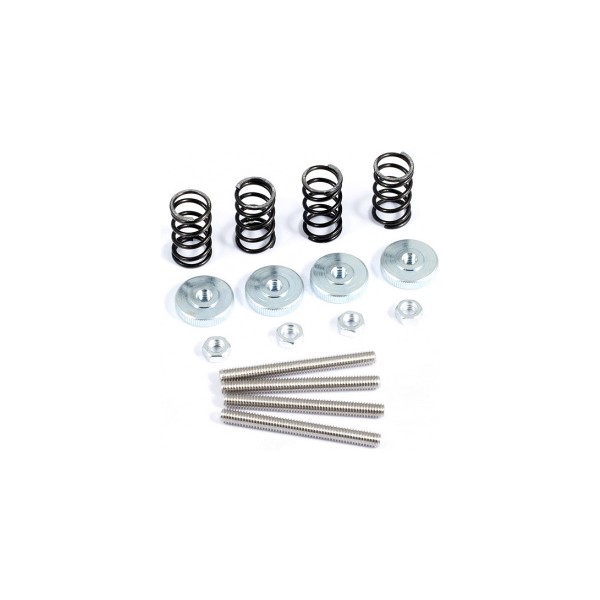

In the box
- 4 threaded bolts M4x30 (headless screws)
- 4 nuts M4 (hex nuts)
- 4 springs
- 4 knurled nuts M4
