Details

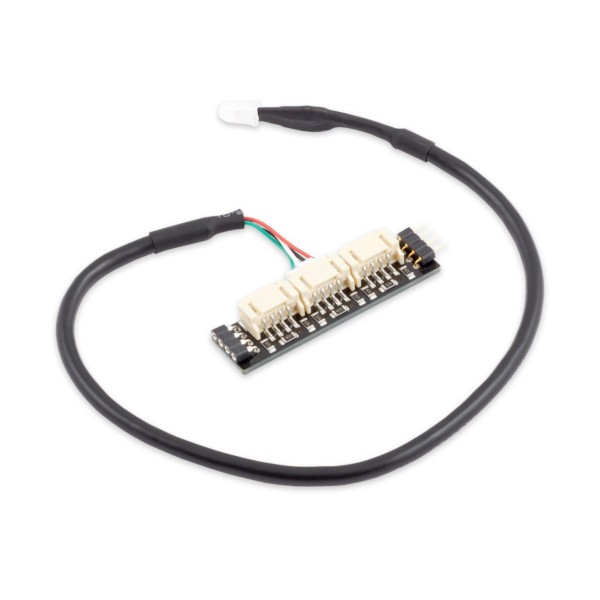

The Aquacomputer RGB Splitty3 LED Incl. is an RGB splitter board for up to three LEDs, with one 5 mm RGB LED included. It plugs into a farbwerk controller (item codes 53170/53207) or a compatible motherboard RGB connector.
Properties
- For
- farbwerk, most motherboard RGB LED strip connectors
- LEDs
- three in total, one included
- Included LED
- RGB, 5 mm diameter
- LED cable
- length approx. 30 cm
How it connects
The board is inserted vertically into a suitable connector. The LED that is included in delivery is plugged in from the side, and two more LEDs can be connected the same way. The connector at the end of the board is there to attach another RGB Splitty 3 or an LED strip, so several boards can be chained.
Due to the spacing of the connectors on a farbwerk controller, only channels 1 and 4 can be used there for RGB Splitty3 boards. When used on a motherboard, the board goes on the header most boards provide for RGB LED strips.
Where the LED goes
The LED has a 5 mm diameter, which makes it suitable for installation in many water cooling components. Aquacomputer names such parts as aqualis reservoirs, aquatubes and the acrylic versions of cuplex kryos NEXT. Additional LEDs (item code 53233) are purchased separately; other 5 mm parts are in our 5mm LEDs section.
Compatibility
Aquacomputer lists the RGB Splitty 3 as compatible with:
- farbwerk (Art. 53170, 53171, 53207)
- RGB LED outputs on most motherboards
In the box
- 1x RGB Splitty 3 Board
- 1x RGB LED with cable, length 30 cm
