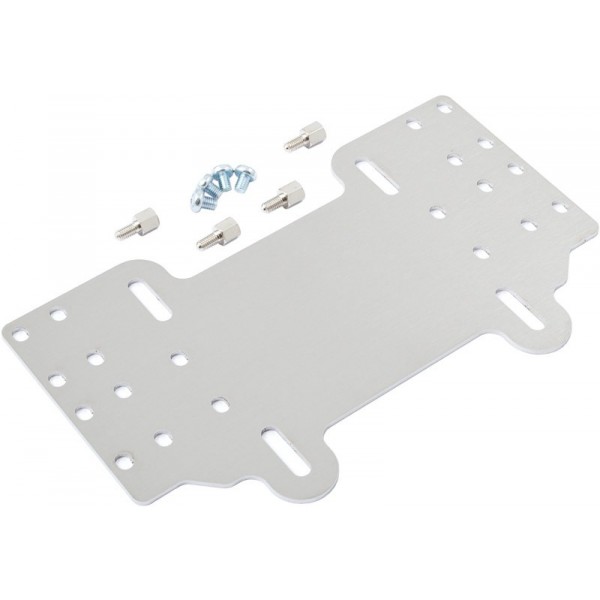

The Aquacomputer Radiator Pump Mount is a stainless steel bracket for mounting a pump on a radiator, fixed with the supplied standoffs between two 120 mm or 140 mm sections of the radiator. It works only on radiators with fan mounting threads on both sides, and it does not fit the airplex evo.
Properties
- For
- Radiators with fan mounting threads on both sides
- Position
- Between two 120 mm or 140 mm sections
- Material
- Stainless steel
- Hardware
- Four M3x5 mm standoffs, four M3x4 mm cross-head screws
How it mounts
Aquacomputer calls this bracket ideal for holding a pump on a radiator. The plate can be mounted on the supplied standoffs between two sections of the radiator, a position Aquacomputer describes as ideal for airflow.
What the radiator and pump need
Radiators with threads for fan mounting on both sides, as Aquacomputer names them, include the airplex modularity system and the airplex PRO/XT. For the best hold of the pump, Aquacomputer recommends its decoupling set, article 41092, which is not included.

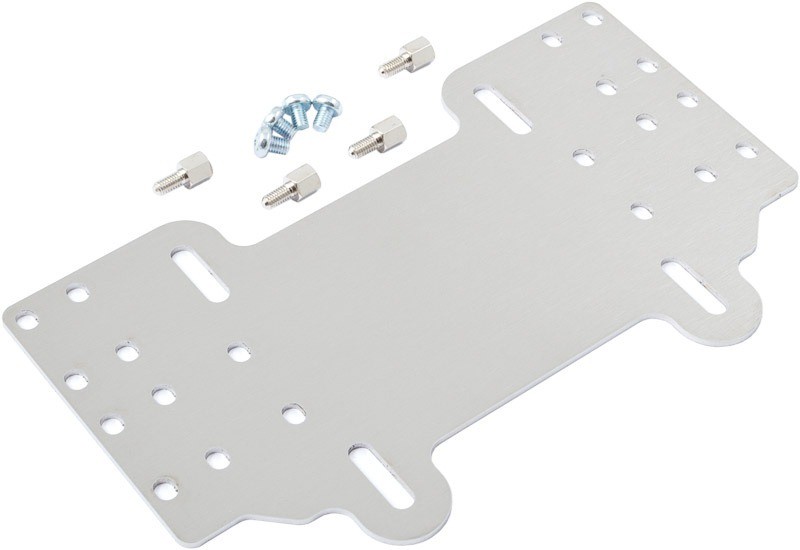

In the box
- Stainless Steel Bracket
- 4x M3 x 5mm Standoffs
- 4x M3 x 4mm Screws
