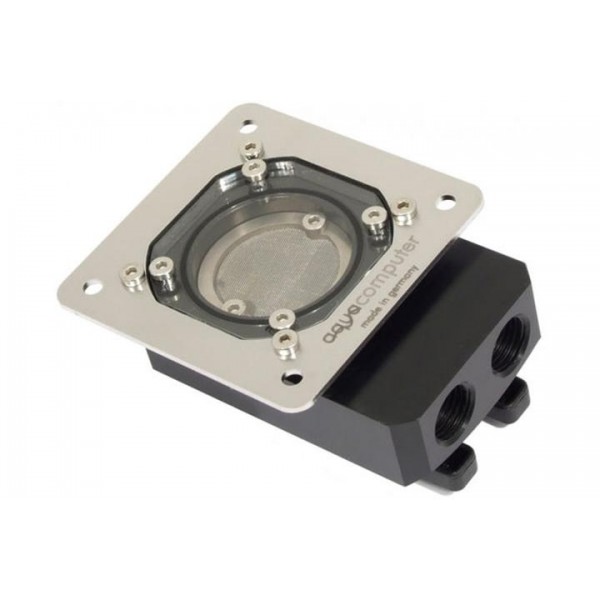

Aquacomputer Filter with stainless steel mesh, ball valves and mounting plate G1/4 (34018)

The Aquacomputer Filter with stainless steel mesh, ball valves and mounting plate G1/4 (34018) is a coolant filter unit with two G1/4 connection threads, 20 mm apart. Its two integrated ball valves let you clean the filter without draining the coolant from the whole system. Fittings and the lighting module are not included.

Properties

Ports

2x G1/4, 20 mm between threads

Filter casing

Acetal (Delrin), black

Filter mesh, rear cover, mounting plate

Stainless steel

Window

Acrylic glass (Plexiglas)

Lighting

G1/8 thread at the bottom for an illumination module

Cleaning without draining

Aquacomputer sees a great advantage in practicality in this unit, compared to standard, more simple filters. With the two integrated ball valves the filter can be cleaned while the rest of the loop stays full. The stainless steel mesh is extremely durable and can easily be removed for cleaning.

Mesh, window and flow

The mesh has an exceptionally large surface area, which also results in a very low flow resistance. The Plexi cover on top allows visual control of the current state of the mesh, so it is easy to see when it needs cleaning.

Mounting and lighting

A stainless steel mounting plate (bezel) for installation in the PC case is included, along with its mounting material. Lighting possibilities are given by the G1/8 thread in the base of the unit, which takes an illumination module from our reservoir lighting section.

What the loop needs

Order two fittings for your preferred hose dimensions separately; the G1/4 ones are in our fittings section. A spare filter mesh is available as the spare mesh for stainless steel filter (93637).

Technical specifications

Notes

• Fittings and illumination module are not part of the extent of delivery.

In the box

• Assembled filter unit (filter element)
• Mounting plate (bezel)
• Mounting material
