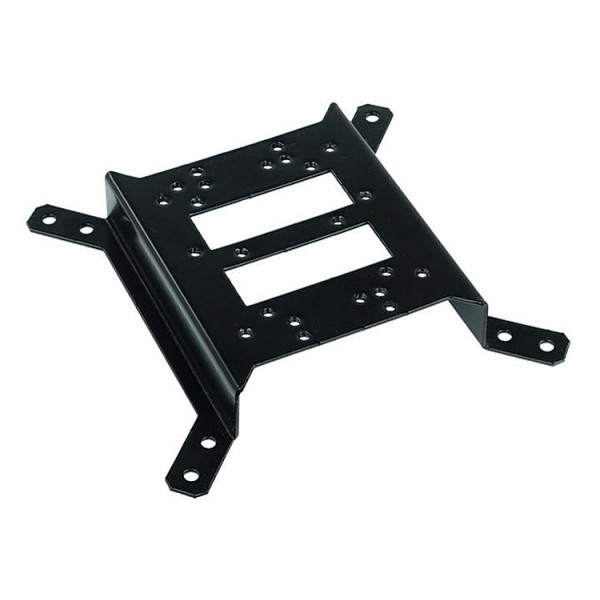

Alphacool Universal Pump Mount for 120/140mm Fans (13155)

The Alphacool Universal Pump Mount for 120/140mm Fans is a black coated steel bracket that holds a pump on a 120 mm or 140 mm fan spot or radiator, one bracket per pack. Alphacool notes that it is not compatible with the Laing DDC310, the Laing DDC 3.25 and the Laing DDC 1T Plus PWM.

Properties

Mounts on

120/140mm fan mounting spots, 120/140mm radiators

Pumps

Eheim 1046 and 1048, Phobya DC, Magicool, Laing DDC (see the list)

Material

Black coated steel

Pieces in the pack

1

Where it goes

Alphacool calls it the universal mounting solution for almost all pumps. Installation is on any 120/140 fan slot or any 120/140 radiator, so there is no more drilling: this is pump mounting the smart and easy way.

Compatible with the following pumps

• Eheim 1046 (Alphacool, Watercool, Innovatek HPPS, Aquastream)
• Eheim 1048
• Phobya DC series and EKWB
• Magicool universal pump
• Laing DDC-1T, 1RT, 1RT Plus

Alphacool's note: not compatible with Laing DDC310, Laing DDC 3.25 and Laing DDC 1T Plus PWM.

What the mount needs

The box holds the bracket alone, so the pump comes separately: see our DDC pumps and Eheim pumps. Alphacool's tip is that Laing/Eheim decoupling sets reduce the pump noise considerably.

In the box

• 1x Universal Pump Mount for 120 / 140mm fans
