Details

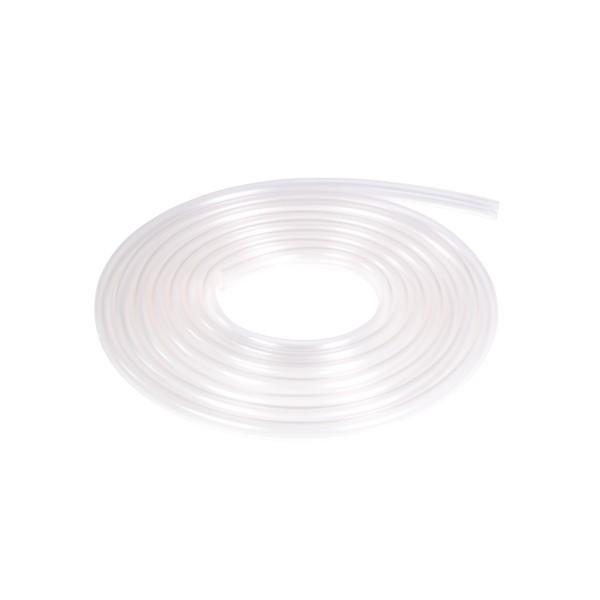

The Alphacool Tubing AlphaTube HF 10/8 (5/16"ID) - Ultra Clear 3m (9.8ft) Retailbox is clear PVC tubing for water cooling with an 8 mm inner diameter (ID) and a 10 mm outer diameter (OD). One retail package holds 3 m of hose.
Properties
- Tube size
- 10/8 mm (10 mm OD, 8 mm ID)
- Length
- 3 m (9.8 ft)
- Material
- PVC
- Color
- Ultra Clear
- Working pressure
- 2 bar
Application
A water cooling system consists of many different elements: pumps, radiators, cooling blocks, reservoirs and often other components. In order to build up a functional system, these must of course be connected to each other, and the easiest way to do this is to use tubing. Here Alphacool calls its AlphaTube HF the best choice. Alphacool says the tubing has the "perfect flexibility" to be easily installed. The hose is flexible enough that it can be laid without effort, but at the same time rigid enough that it will not kink easily, even with tighter bending radii.
Optics
Alphacool makes this hose in different vivid colors, clear and also UV-active. That range offers a large selection of colors and styles, making it easy to find the one that best suits your taste. It is also available in different sizes: "We offer the AlphaTube HF hose in all common sizes," as Alphacool puts it.
What a run needs
A run of hose takes two fittings, one at each end, sized for an 8 mm inner and 10 mm outer diameter.
Technical data
| Length | 3 m |
| Tube size | OD 10 mm / ID 8 mm |
| Material | PVC |
| Hardness grade | 65-70 A-Shore |
| Working temperature | -10 - 80 °C |
| Burst pressure | 8 bar |
| Working pressure | 2 bar |
Notes
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
In the box
- 3 meters of tubing
