Alphacool has been dominating the market with the NexXxoS Full Copper radiator series for more than a decade. The extensive portfolio of radiator variants is unique in the world. Just like our manufacturing process, which enables us to manufacture all water-carrying parts and the cooling fins from pure copper. The NexXxoS series thus achieves the highest thermal conductivity of all radiators on the market. With their incomparable performance, the radiators can easily dissipate even extremely high waste heat and have become indispensable in many areas of the cooling industry.

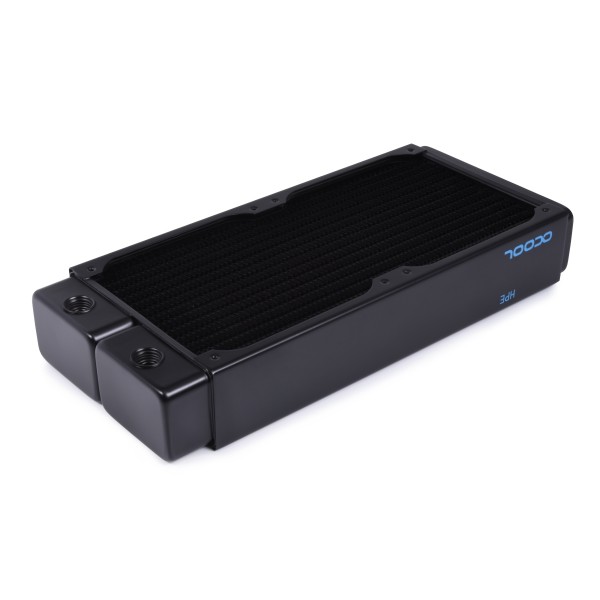

The next step in evolution: NexXxoS HPE Full Copper Radiator!
The NexXxos Full Copper HPE Radiator uses the same materials as the previous NexXxos models, but technically goes one step further. Due to the compressed internal structure, the number of water channels and copper fins could be increased. This means that a larger volume of water is in direct contact with the cooling fins and heat transfer is improved enormously. Due to the higher number of fin rows and their shortening, the cooling surface is also used much more efficiently. Comparative tests* with the conventional NexXxos radiator have shown that a performance increase of 4.5K is possible when using the HPE radiator.

(* Test setup: NexXxos ST30 360mm radiator vs. NexXxos HPE-30 360mm radiator with Eisbaer cooler and 3x 120mm Rise Aurora fan and on Asus Prime x299 mainboard with Intel i9 10900x CPU with 350W waste heat)

Connection options & assembly
The NexXxoS HPE radiator has in the area of the antechambers via two IN or OUT connections with G1/4" thread. On the opposite side there is a fill or vent port that can be used to fill and drain the water circuit. All screws for mounting in the housing and for mounting the fans are included with the radiator. Additional screws are usually not required.

safety first
The NexXxoS HPE radiator has a special protective device that prevents fan or mounting screws from being screwed in too deeply. Protective plates were placed under all mounting holes to prevent the screws from being screwed in too deeply. This protects the underlying cooling fins and water channels from damage.

Patented screw
plugs All NexXxoS HPE radiators use Alphacool's patented screw plugs. Protruding locking screws often ensure that the radiator cannot be placed flush. Alphacool's screw plugs are completely countersunk in the radiator, are flush with its surface and enable easy installation in the housing.
