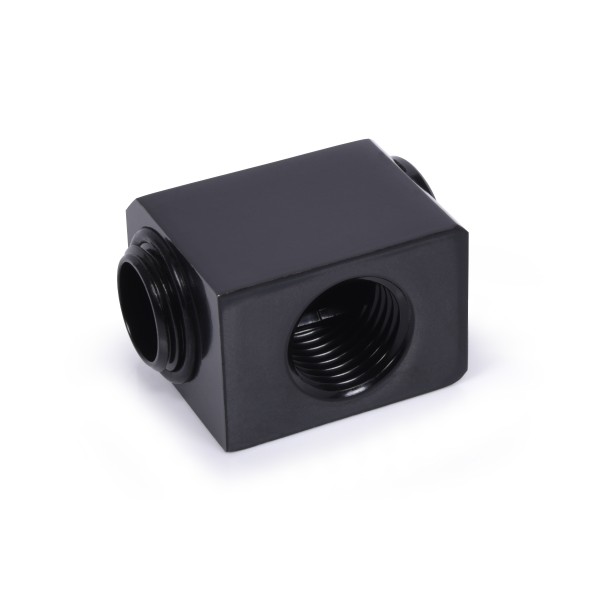

The Low Profile ES L-connector from Alphacool's ENTERPRISE SOLUTIONS series with 1 G1/4" male thread and 1 G1/4" female thread offers the possibility to connect components like GPU and CPU coolers, reservoirs or radiators into a water circuit even in the tightest server case.

Use
The Low Profile ES L-connector can be rotated 360°. Compared to Alphacool's conventional L-connectors, rotation is not made possible by turning the connector itself, but by a recessed, freely rotatable plug with a screw slot on the threaded opposite side of the connector. With the help of a screwdriver or the plug-in tool from Alphacool, the integration of water cooling elements is simplified, as the connector itself no longer needs to be rotated. The positioning of the connector is done using the adjustment options on the plug itself. This is particularly advantageous in tight server housings with little space available. The position of the Low Profile ES L connector can also be easily adjusted or changed later on in this way.

Variants
The Low Profile ES L connector is available in either brilliant chrome or matt black. A special procedure binds the outer coating firmly to the surface, improving the longevity of the intense colour and preventing any chipping or peeling of the coating. Every connector has the Alphacool logo, which along with their distinctive shape makes them unmistakable! Replacement O-rings in three different colours are included.

•  Datasheet (EN)
