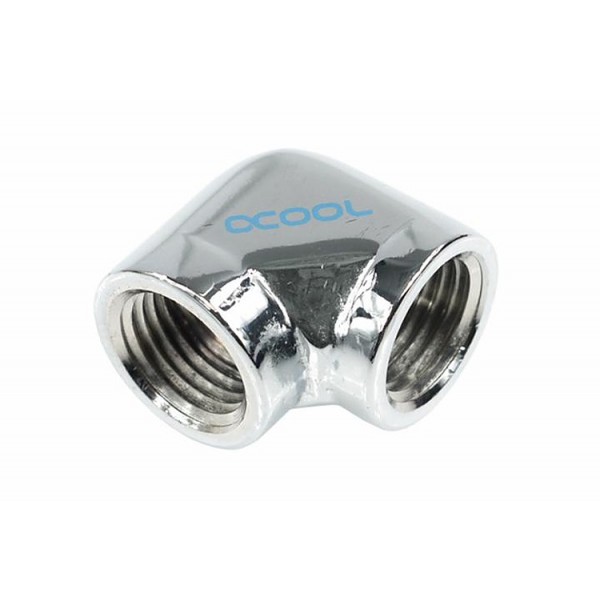

Alphacool G1/4 Female to Female L-Connector - Chrome (17041)

The Alphacool G1/4 Female to Female L-Connector - Chrome is a 90 degree angle adapter with a G1/4 inner (female) thread on both ends, one connector per pack. Alphacool lists it as the HF L-connector G1/4 IG to G1/4 IG, where IG stands for inner thread.

Properties

Thread

G1/4 inner thread, both ends

Angle

90 degrees

Material

Brass, chromated

Color

Chrome

Size

23 mm length, 18 mm diameter, 23 mm height

Pieces in the pack

1

What it does

A sleeve with two G1/4 internal threads is useful when you want to extend connections, or join a component that has an external thread to a fitting. The 90 degree bend makes it practical where a straight sleeve would not have room.

High flow and colors

Alphacool says its fittings go new ways in looks, quality of manufacturing, color and choice. Its main claim is an inner diameter that truly deserves the "high flow" attribute. Chrome, Deep Black and Shiny Copper are the first three colors, and Alphacool says they offer something for every taste; this one is Chrome. The matching product series are designed to look elegant in every system, highlighting the individual design of the computer. In its words the limits are endless when these fittings are used in combination with Alphacool tubing.

Finish

The body is brass. With a new process during chromating, the surface finish is completely connected with it, hence ensuring permanent intense colors and no peeling or flaking of the chrome layer, Alphacool says. It adds that the Alphacool name in blue lettering on some of the fittings additionally underlines the individuality of these items.

What a run needs

Each end takes a part with a G1/4 outer thread, such as one of our fittings or the threaded stub on a component. The connector has no tube connection of its own.

Notes

• Alphacool's note on application: use the connector only with clear, transparent water cooling fluids. The particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses.

Alphacool's 3D model of the same connector in black (17042) is an STP file, and the 3D viewer shows it from every side.
