Details

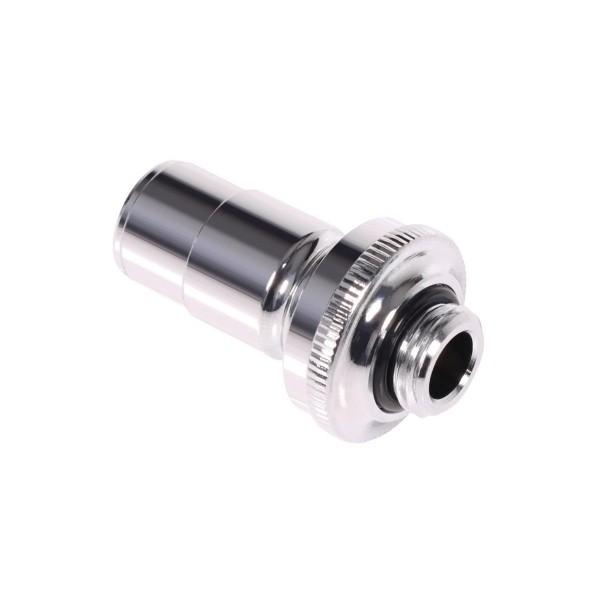

The Alphacool ES Quick Release BLH1A PushIn Male OT is the male half of a quick-release coupling with one G1/4 outer thread (OT), one fitting per pack. With this product you only get 1 half of the quick-release fastener: the counterpart with the same thread is the female half OT.
Properties
- Thread
- 1x G1/4 OT
- Size (L x D)
- 67 x 44 mm
- Material
- Nickel-plated brass
- Color
- Chrome
- Pieces in the pack
- 1 (one half)
Maximum flow rate
Alphacool's ES quick-release connector is optimized for use in server and workstation systems. Alphacool says it is characterized by precise manufacturing quality, excellent water flow and a secure click mechanism for sealing. Because other quick couplings can negatively affect the flow of water, the quick coupling has therefore been fundamentally redesigned so that the water flow is hardly disrupted. According to Alphacool, particular emphasis was placed on minimal processing tolerances.
Quick and easy
The ES quick connectors from Alphacool are meant to simplify the assembly of such systems. Alphacool says that, thanks to the convenient handling, complex systems can be connected quickly and easily. To open the quick-release fastener, the outer ring is pulled back: the seal closes immediately and prevents coolant from escaping. To lock the quick-release fasteners, simply push them into each other until a clicking noise confirms secure locking.
What a run needs
A quick-release fastener always consists of two fittings, so you always need the right counterpart to create a complete quick release fastener. The outer thread of this half screws into a G1/4 port, and the other halves are in our quick disconnect fittings section.
Technical data
| Dimensions (L x D) | 67 x 44 mm |
| Weight | 50 g |
| Material | nickel-plated brass |
| Thread | 1x G1/4 OT |
| Color | chrome |
Notes
- Note from Alphacool: to avoid damaging the O-ring, do not open or close the quick-release fastener when it is dry.
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
In the box
- 1x ES Quick Release BLH1A PushIn Male OT
Alphacool's data sheet is a PDF.
