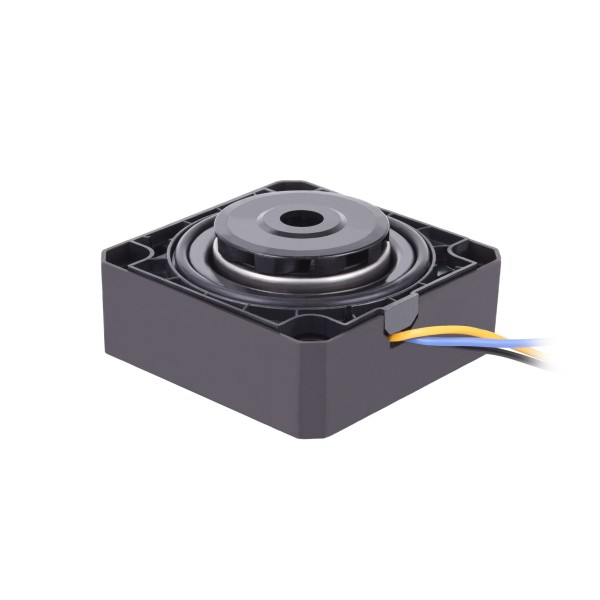

Alphacool ES Laing DDC310 Pump - Single black plastic bottom (13991)

The Alphacool ES Laing DDC310 Pump - Single black plastic bottom is a DDC pump for server water cooling, 62 x 62 x 30 mm, delivered with a plastic bottom. Alphacool's ES Solution pump serves as the foundation for various 1 to 4U server solutions. It has been coupled with a simple pump base to maintain compatibility with the range of Enterprise Solution reservoirs. However, it can also be mounted on all existing DDC pump tops from Alphacool.

Properties

Pump

Laing DDC310, 3250 rpm, no PWM control

Size (L x W x H)

62 x 62 x 30 mm

Maximum flow rate

200 l/h

Power connector

4-Pin Molex, 12 V DC

Speedometer signal

3-Pin Molex

Compact and powerful

The unit is based around what Alphacool calls its very popular DDC pump. Its flat design, 30 mm in height, saves space and fits, with the corresponding Enterprise reservoirs, starting from chassis as small as a 1U server rack. Alphacool says this results in a very powerful pump that can be used in the smallest of spaces. Alphacool says the DDC310 variant offers enough power to operate an extensive water loop. According to Alphacool the performance is enough for a dual or quad socket system including reservoir and radiators. Alphacool also rates it as sufficient to run a render server with up to 4 graphics cards.

Spherical Ceramic Bearing

The pump uses a shaftless ball motor, also called a spherical bearing, and stainless steel and ceramics are among its materials. The motor is driven by magnets, while its rotor is mounted on a ball-ceramic bearing. Because that bearing is self-adjusting, the pump is maintenance-free. During operation the pump is lubricated by the coolant, which makes it a so-called wet rotor pump. Due to this design, Alphacool says, even small particles of dirt are no problem.

Installation and Commissioning

The classic plastic bottom the pump is delivered with ensures what Alphacool calls a high compatibility to all Enterprise Solution products. The pump comes with a corresponding O-ring. Only the mounting screws must be used from the respective reservoir, as these may differ in length. The power is supplied via a 4-pin Molex connector, and the speed can be read out via a 3-pin Molex connector. This is usually done via the 3-pin fan connector on the mainboard or via an appropriate fan controller.

What the loop needs

A reservoir or pump top for the DDC, with its own mounting screws, and a free 4-pin Molex plug from the power supply.

Technical data

Notes

• Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.

In the box

• 1x Alphacool ES Laing DDC310 Pump Core
• Hardware and Accessories
• 1x O-Ring
• 1x Plastic bottom for direct mounting

Alphacool's data sheet, a PDF to download, has the technical data and the scope of delivery. Its 3D model of the pump is an STP file, and the 3D viewer shows it from every side.
