Details

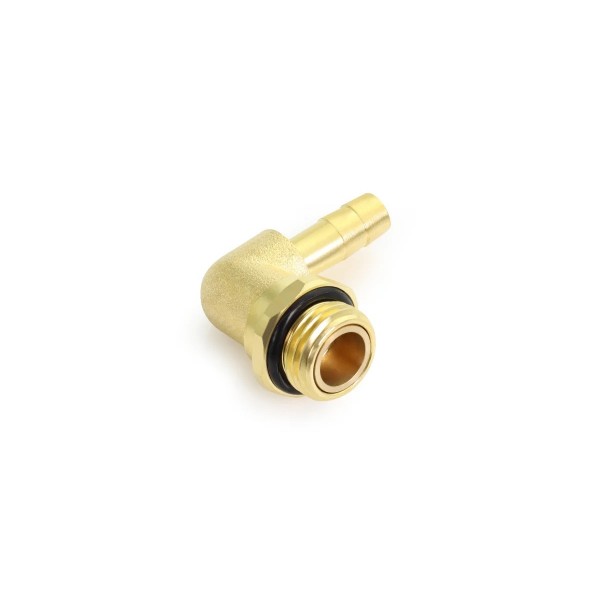

This Alphacool ES fitting is a 90° rotatable barb fitting with a G1/4 outer thread for tubes with a 6 mm inner diameter (ID), one fitting per pack. It is part of Alphacool's professional ES series for water cooling systems in servers, workstations and industrial applications.
Properties
- Thread
- G1/4 outer thread
- Tube size
- 6 mm inner diameter
- Angle
- 90°, rotatable
- Material
- Solid brass (CuZn39Pb3)
- Color
- Brass, raw
- Pieces in the pack
- 1
Solid brass barb
The barbed fitting is precisely machined and the construction is solid brass. With both, Alphacool says, this connector ensures a secure and leak-proof connection for 6mm tubing. Its internal diameter is optimized for minimal flow resistance, supporting effective coolant circulation even where system configurations are complex.
Barb instead of compression
Hose barb fittings offer a compact, straightforward alternative to compression fittings. By saving space and highlighting more of the tubing, they are especially useful in tight installations or specialized setups. Despite their minimal form factor, Alphacool says they provide a secure hose grip and high flow capacity.
90° and rotatable
The 90° design is rotatable, and thanks to it the tubing can be routed with what Alphacool calls exceptional flexibility. The angle simplifies a clean loop layout and reduces mechanical stress on the tubing. It also enables space-saving installations, which Alphacool finds ideal for compact cases or densely packed rack systems.
ES Series
The ES Series is developed for professionals, and Alphacool says it sets new standards in design, functionality and reliability. In its words, each component in the ES line is engineered to professional-grade reliability and performance. Whether in a high-performance workstation or an industrial cooling setup, it says these fittings deliver consistent performance and robust build quality.
What a run needs
A tube run takes two fittings, one at each end. The G1/4 outer thread screws into a G1/4 port and is tightened with an open-end wrench with a 16 mm width across flats. The barb takes tube with a 6 mm inner diameter. Other barbs for this tube size are in our 6mm barb fitting section.
Technical data
| Type | 90° rotatable fitting for low flow rates |
| Dimensions | 30.50 mm x 26.35 mm x 15.80 mm |
| Nominal diameter | 6.5 mm |
| Connection type | barbed fitting for tube |
| Material | brass (CuZn39Pb3) |
| Seal material | EPDM Shore A 70 |
| Clamping spring material | stainless steel (X10CrNi18-8) |
| Working pressure | 2 bar |
| Burst pressure | 8 bar |
| Working temperature | -20 °C to +100 °C |
| Recommended liquids | water, deionized water, glycol water, propanediol water etc. |
| Thread type | G1/4, 6 mm outer thread |
| Threaded fastening | Open-end wrench width across flats 16 mm |
| Weight | 21 g |
| Color | brass, raw |
In the box
- 1x Alphacool ES G1/4 90° Rotatable Fitting with Barbed Fitting for Tubes ID 6mm
Alphacool's data sheet is a PDF. Its 3D model of the fitting is an STP file, and the 3D viewer shows it from every side.
