Details

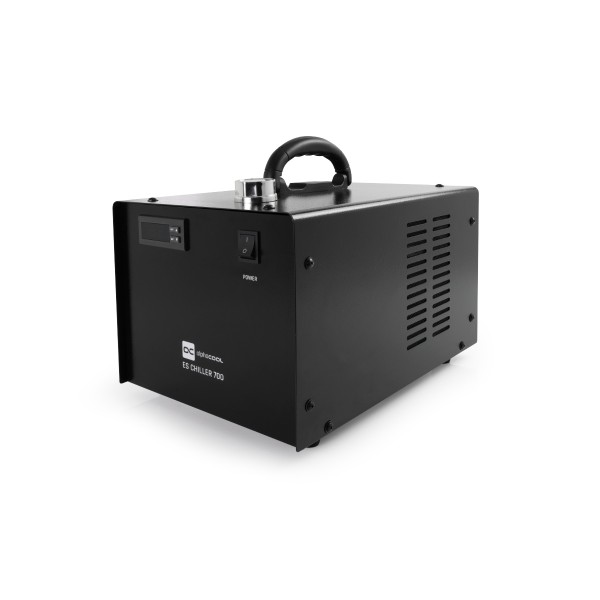

The Alphacool ES Chiller 700 110-120V / 60hz is a compressor chiller for water cooling systems in servers and workstations, with an integrated pump, a built-in 2 liter reservoir and G1/4 connections. It runs on 110 - 120V at 60 Hz. Alphacool rates the maximum cooling capacity at 700 watts, making it, in its words, the perfect choice for cooling servers and workstation systems.
Properties
- Pump
- Integrated, max. Lift 10 m
- Capacity
- 2 l reservoir
- Ports
- Inlet / Outlet, G1/4 inner threads
- Size (L x W x H)
- 380 x 260 x 235 mm
- Maximum flow rate
- 10 l/min
- Voltage
- 110 - 120V, 60 Hz
All in One
This compressor cooling system is equipped with a pump of its own, so the chiller takes on the task of both circulating and cooling the coolant, ensuring that the desired temperature is maintained. Its display can be used to configure various settings, including temperature control in precise 0.3 °C increments. The reservoir is built in and holds a capacity of 2 liters.
Pump
Thanks to the integrated pump, with a maximum delivery head of up to 10 m, the chiller can be integrated directly into the cooling loop. An extra pump is not necessary.
Protection
For the sake of additional protection, the compressor has overcurrent protection. An alarm warns if the flow rate is too low or the temperature is too high.
Where it stands
The chiller is a stationary appliance, and a carrying handle makes for easy transportation. The next size up is the ES Chiller 1000.
What the loop needs
The G1/4 connections are compatible with common connections for water cooling systems. Inlet and outlet are G1/4 inner threads, so the chiller takes two G1/4 fittings. The reservoir and the rest of the loop still need coolant.
Performance calculation
The cooling capacity moves with three factors: the water outlet temperature (Fw), the ambient temperature (Fa) and the percentage of glycol in the coolant (Fg). Each table below gives the factor for one of them. Formula: 0.7kW * Fw * Fa * Fg.
Example: a chiller that delivers 0.7kW cooling capacity, with a water outlet temperature of 30 °C, an ambient temperature of 40 °C and 30 % glycol. Calculation: 0.7kW * 1.64 * 0.87 * 0.91 = 0.9kW.
Water outlet temperature (Fw)
| 8 °C | factor 0.69 |
| 10 °C | factor 0.77 |
| 15 °C | factor 1 |
| 20 °C | factor 1.22 |
| 25 °C | factor 1.44 |
| 30 °C | factor 1.64 |
| 35 °C | factor 1.82 |
| 40 °C | factor 2 |
Ambient temperature (Fa)
| 15 °C | factor 1.26 |
| 20 °C | factor 1.2 |
| 25 °C | factor 1.11 |
| 32 °C | factor 1 |
| 35 °C | factor 0.95 |
| 40 °C | factor 0.87 |
| 45 °C | factor 0.8 |
| 50 °C | factor 0.72 |
Percentage of glycol in coolant (Fg)
| 0 % | factor 1 |
| 10 % | factor 0.96 |
| 15 % | factor 0.95 |
| 20 % | factor 0.94 |
| 25 % | factor 0.93 |
| 30 % | factor 0.91 |
| 35 % | factor 0.9 |
| 40 % | factor 0.88 |
Technical data
| Dimensions (L x W x H) | 380 x 260 x 235 mm |
| Net Weight | 16 kg |
| Voltage | 110 - 120V |
| Frequency | 60 Hz |
| Current | 0.4-2.68A |
| Compressor Power | 460W |
| Refrigeration Capacity | 700W |
| Refrigerant | R1234YF |
| Refrigerant Charge | 130 g |
| Precision | +/-0.3 °C |
| Reducer | Capillary |
| Pump Power | 28W |
| Reservoir Capacity | 2 l |
| Inlet / Outlet | G1/4 Inner threads |
| max. Lift | 10 m |
| max. Flow | 10 l/min |
| Protection | Compressor overcurrent protection, flow alarm, overtemperature alarm |
| IP rating | IP44 |
| Recommended operating temperature (in degrees Celsius) | 5 °C ~ 40 °C |
| Recommended storage temperature (in degrees Celsius) | 0 °C ~ 40 °C |
| Color | black |
In the box
- 1x ES Chiller 700
- 1x 1.5m power cable (US plug)
- 1x Chiller Alarm Adapter
Alphacool's manual and data sheet for this chiller are PDFs. Our chiller sizing guide (English, Spanish and French) shows how to work out the real cooling capacity for your room temperature, water temperature and coolant, and which of the four US chillers fits your heat load.
