Details

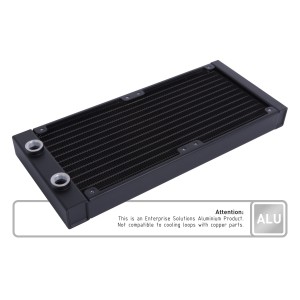

The all-aluminum ES T27 and T38 radiators from Alphacool's ENTERPRISE SOLUTIONS series were specially developed for use in the industrial range. Due to the low construction height of 27mm or 38mm, they find space in the smallest of spaces and enable the water cooling of technical equipment in the automotive industry, in mechanical engineering or in the production of films and videos.
High Performance
Compared to Alphacool's full copper models, all ES T27 and T38 aluminum radiators have additional cooling channels. This technical design allows a significant increase in cooling capacity without restricting the water flow within the radiator. The radiators have a high fin density and are particularly suitable for use with fans with high air pressure and air throughput. This achieves a significant increase in the performance of the water-cooled components.
Fitting and mounting options
The radiator offers an inlet and outlet (IN/OUT) with G1/4" thread. Screws for case mounting (M3x5) and for fan mounting (M3x30) are included with the radiator. Additional screws are not required for single-sided fan mounting.
Important note
This is an Enterprise Solutions Aluminum product. The ES aluminum radiators must not be used together with copper water cooling products (radiators, fitting, etc.). Using aluminum & copper components together will cause severe damage to the liquid cooling loop.
Technical data | |
L x W x H | 276 x 120 x 27 mm |
Material cooling fins, channels & prechamber | Aluminum |
Material outer housing & threads | Aluminum |
Fins per Inch | 19 |
Threads | 2x G1/4“ |
Thread size fan mounting | M3 |
Fan size | 120 mm |
Fan slots | 2 one-sided / 4 double-sided |
Max working temperature | 90 °C |
Pressure tested | 2,0 Bar |
Weight | 321 g |
Color | Black |
Downloads:
Datasheet PDF
Additional Information
Manufacturer | Alphacool |
---|---|
Overall Dimensions | 276 x 120 x 27 mm |
Color | Black |
Radiator Type | 120mm Dual |
Radiator Thickness | 30mm |
Fan Compatibility | 120mm |
Fin Density | 19 FPI |
Screw Thread | M3 - 0.5 |
Number of Ports | 2x G1/4 |
Included | 1x Alphacool ES Aluminum 240mm T27 Radiator Mounting Materials |
Material | Aluminum |
