Details

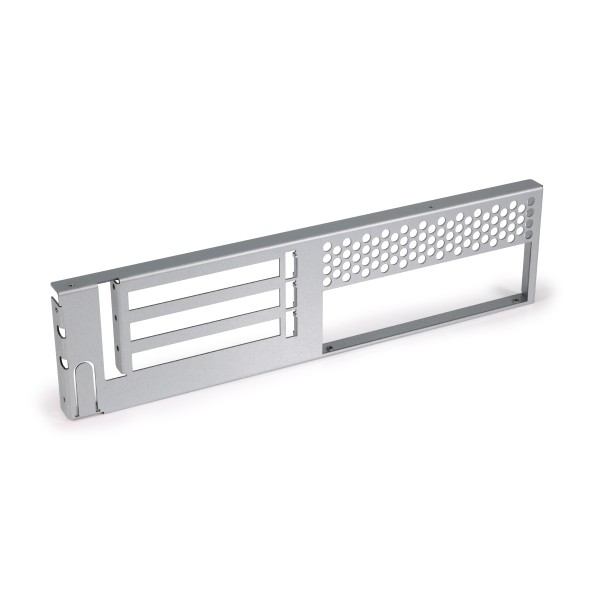

The Alphacool ES 2U Rear Panel 3x PCIe 90 is a rear panel for 2U server racks that allows you to install up to three PCI Express modules at a 90° angle. It has three PCIe recesses and one cut-out for the motherboard I/O connectors.
Properties
- Fits
- 2U ServerRacks
- Recesses
- 3x PCIe | 1x motherboard I/O connectors
- Dimensions (L x W x H)
- 335 x 85 x 15 mm
- Weight
- 240 g
- Color
- Silver
What the panel does
Installing PCI Express modules such as graphics cards at a 90° angle is a way of saving space in a server rack. Alphacool says it has created an innovative solution for exactly that. The ventilation slots sit directly above the cut-out for the mainboard I/O ports, and thereby ensure an effective airflow through the system.
What the build needs
The panel is made for 2U ServerRacks, and Alphacool's technical specifications list it at 335 mm long. It comes on its own: the scope of delivery is one ES 2U rear panel, so the cards and the case are yours to add.
Alphacool's data sheet is a PDF. Its 3D model of the panel is an STP file, and the 3D viewer shows it from every side.
