Details

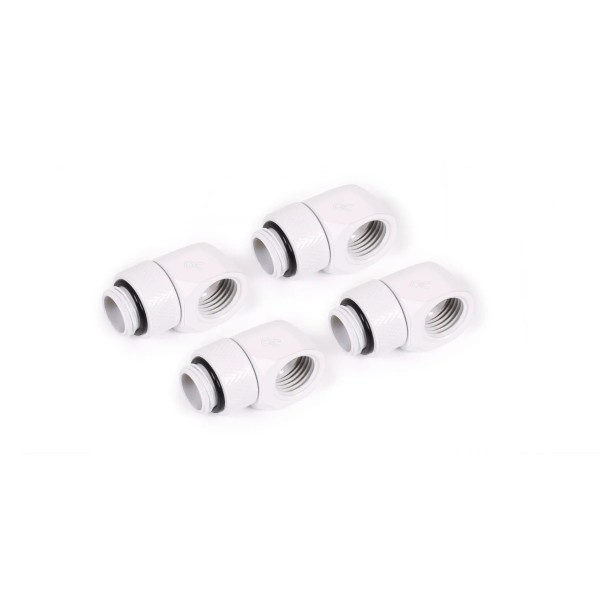

The Alphacool Eiszapfen L-Connector Rotatable G1/4 AG to G1/4 IG - 4pcs Set White is a set of four 90° angle adapter fittings in brass. Each has a rotatable G1/4 external screw thread (AG, also written OT) on one side and a G1/4 internal thread (IG, or IT) on the other side.
Properties
- Thread
- G1/4 external, rotatable, to G1/4 internal
- Angle
- 90°, with 360° of rotation
- Color
- White
- Material
- Brass
- Pieces in the pack
- 4
Model: Rotatable L-Connector
This connector is mostly useful in cases where there is little space available and a special solution is needed. The adapter turns on its external thread, for maximum flexibility. Thread length: 5 mm.
Design
Alphacool calls its Eiszapfen connector series the high-end execution of these tried-and-true fittings. It says everything you want in a compression fitting is here too: highflow, form, processing and color. In its words, a refusal to compromise in development and production has made the Eiszapfen series into what it is. Its fittings are available in brilliant chrome or a deep, matte black, and now in matte white, the color of this set. Alphacool says they will fit excellently into any system.
A special procedure binds the outer coating firmly to the surface, improving the longevity of the intense color and preventing any chipping or peeling, Alphacool says. Every connector now has the Alphacool logo, which Alphacool says makes them unmistakable along with their distinctive shape.
What the loop needs
The external thread screws into any G1/4 port, and the internal thread takes a G1/4 fitting from our fittings section. The connector holds no tube on its own.
Technical data
| Dimensions (L x W x H) | 32.00 x 18.00 x 18.00 mm |
| Material | Brass |
| Threads | G1/4 AG, G1/4 IG |
| Possible rotation | 360° |
| Version | 90° angled |
| Thread depth | 5 mm |
| Color | white |
Notes
- Alphacool's note on application: use only clear, transparent water cooling fluids. The particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses.
In the box
- 4 x Alphacool Eiszapfen L-connector G1/4 AG to G1/4 IG
Alphacool's Datasheet (EN) lists the technical data.
