Details

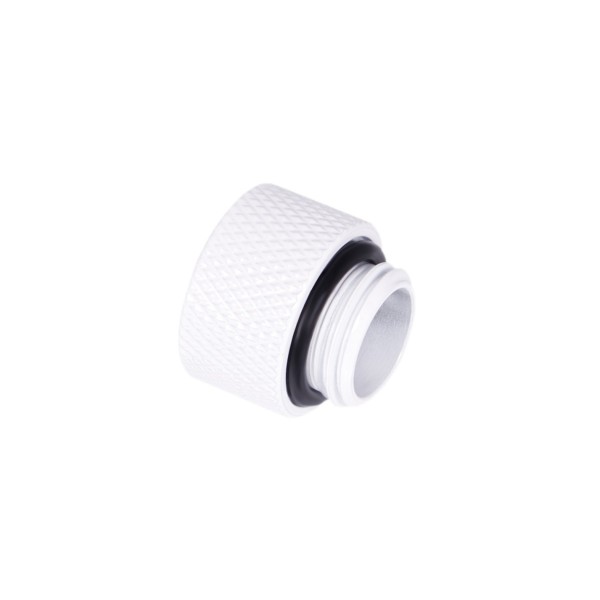

The Alphacool Eiszapfen G1/4 Male to Female Extender Fitting - 10mm - White is a slim brass adapter that extends a G1/4 thread by 10 mm, one fitting per pack. It runs from a G1/4 outer thread to a G1/4 inner thread, and the male thread is 5 mm long.
Properties
- Thread
- G1/4 outer to G1/4 inner
- Height
- 10 mm
- Diameter
- 18 mm
- Color
- White, matte
- Material
- Brass
- Pieces in the pack
- 1
Compatibility
This extender is mainly useful where a G1/4 thread is hard to reach or sits too far in, for example a port set deep in a block or a reservoir. Here it brings that thread 10 mm closer. Alphacool keeps an interactive Fitting Map, where you can find all of its fittings.
Design
Alphacool says the Eiszapfen is the high-end version of its already proven connectors. By its account the fitting meets all the requirements placed on a connector with its high-flow, shape, processing and color. Three color variants are available: brilliant chrome, deep matte black and decent matte white, which Alphacool says fit perfectly into any system. Thanks to special processes, the coatings are firmly bonded to the substrate. Alphacool says this ensures a high longevity of the colors and prevents the coating from flaking off.
What the loop needs
The male side screws into any G1/4 port, and the female side takes any G1/4 fitting from our fittings section. Other lengths are in our male to female extension fittings section.
Technical details
These are the values from Alphacool's datasheet PDF for this article.
| Material | Brass |
| Color | White |
| Height | 10 mm |
| Thread | G1/4 |
| Thread length | 5 mm |
| Diameter | 18 mm |
| Weight | 12 g |
In the box
- 1 x G1/4 Male to Female Extender Fitting - 10mm
Alphacool's 3D model of this fitting is an STP file to download, and the 3D viewer shows it from every side.
