Details

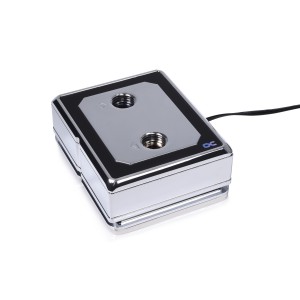

With the Alphacool XPX Aurora Pro Eisblock, Alphacool offers a CPU water cooler specially designed for processors with particularly large processor cores. These currently include the AMD Threadripper models and processors from Intel for the LGA 2066 socket and the LGA 3647 server socket in narrow ILM design. As a CPU cooler from the Aurora Design line, the CPU cooler naturally offers integrated digital aRGB lighting.
Extremely powerful
The cooler base has been specially optimized for the large processor cores. With an area of 42 x 58.6 mm and 147 cooling fins the cooling area has been significantly increased. As a comparison, an Alphacool XPX Aurora Eisblock has 81 cooling fins to completely cover the processor core of a normal CPU. Both coolers use the same fin type with a thickness of only 0.2 mm. This clearly shows how far Alphacool has gone to offer the best possible performance. The entire cooler base is of course made of nickel-plated copper and not aluminium. This is due to the increased thermal conductivity of copper. It is almost twice as high as that of aluminium.
Lighting
Behind the Alpahcool logo, 2 digitally addressable 5V RGB LEDs are installed, which create a unique, very noble-looking illumination. The digital aRGB LED lighting is connected via a JST 3-pin connector. To control the digital RGB lighting, the enclosed adapter must be connected to the 3-pin female connector and connected to a digital RGB controller or a digital RGB-capable mainboard. Additional digital RGB LEDs can be connected to the remaining 3-pin male connector.
Discreet appearance
The matt finish gives the cooler, which is made entirely of brass (except for the cooler bottom), a noble look. This makes it interesting for users who prefer a discreet appearance and want to do without a complex aRGB illumination.
Thermal grease
The thermal paste included in the delivery is Alphacool's Subzero with a thermal conductivity of 16 W/mk. The electrically non-conductive thermal grease is particularly suitable for high contact pressures, but can still be processed perfectly due to its viscosity of 850000 TF.
Compatibility:
Compatibility Intel: LGA 115x / 1200 / 1700 / 2011-3 / 2066 / LGA 3647 / LGA 4189
AMD Compatibility: TR4 / TRX40 / sWRX8 / SP3 / AM4 / AM5
| Technical data | |
| L x W x H | 76,5 x 63,5 x 31mm |
| Material cooler | nickel plated copper |
| Material bottom part | brass |
| Material top | brass |
| Number of aRGB LEDs | 2 |
| Threads | 2 x G1/4“ |
| Power supply Digital aRGB | 3-Pin 5V |
| Pressure tested | 0,8 bar |
| Max working temperature | 60°C |
| Net weight | 705g |
| Color | chrome |
Additional Information
| Manufacturer | Alphacool |
|---|---|
| Overall Dimensions | 76.5 x 63.5 x 31mm (L x W x H) |
| Cooling Plate Material | Nickel Plated Copper |
| Top Cover Material | Brass |
| Socket Type | Intel LGA 115x / 1200 / 1700 / 2011-3 / 2066 / LGA 3647 / LGA 4189 AMD TR4 / TRX40 / sWRX8 / SP3 / AM4 / AM5 |
| Number of Ports | 2x G1/4 |
| Color | Black / Chrome |
| Included | 1x Alphacool Eisblock XPX Pro Aurora - Full Brass, chrome 1x AMD mounting kit (backplates, screws, etc.) 1x Intel mounting kit (backplates, screws, etc.) 4x Knurled Nuts 4x Springs 4x 1mm Washers 1x Digital-aRGB Adapter 1x Subzero 16 W/mk thermal grease + spatula 1x Allen key |
| Material | Copper |
