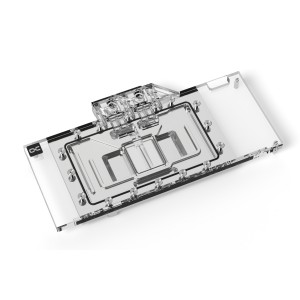

Alphacool Eisblock Aurora RX 7900XTX Reference with Backplate (13547)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Alphacool Eisblock Aurora RX 7900XTX Reference with Backplate (13547)

Availability: In stock - Ships in 3-7 Business Days

Sku: 1023718

$152.50

Quick Overview

The next generation - the Alphacool Eisblock Aurora water cooler for Radeon RX 7XXX graphics cards.
OR

Details

Product Information

The next generation - The Alphacool Eisblock Aurora water cooler for Radeon RX 7XXX graphics cards. In order to dissipate the enormous heat of this graphics card generation in the best possible way, numerous optimizations have been made to the water cooler compared to the previous model. The fin structure was adapted and enables a very good water flow while increasing the cooling surface. The modified jet plate with improved inflow engine ensures an optimal distribution of the water on the cooling fins.

Technical Highlights

The fin structure of this Eisblock cooler generation was developed together with Nvidia board partners. The fin thickness is 0.4 mm, the distance between the cooling fins is 0.4 mm. This ensures a very good water flow while increasing the cooling surface. The jet plate has a revised inlay that spreads the water pressure better over the fins thus optimizing the heat absorption. The adjusted water inflow gives the water a better angle of inflow.

Chrome-Plated Copper

The cooler is made entirely of chrome-plated copper. A chrome plating is much harder than a nickel plating and therefore less sensitive to acids, scratches and damage. It completely eliminates the risk of chipping nickel plating. Additionally, chrome plating looks much more homogeneous and provides a shine that cannot be achieved by nickel plating. Chrome-plated coolers have previously only been used in the industrial sector in areas where extreme influences act on the coolers.

Design

The Aurora design of the Geforce RTX 40XX Eisblock generation is visually calmer and simpler. Only one O-ring runs around the entire cooler. The design around the cooling fins and jetplate makes for a cleaner look. The illumination of the digitally addressable RGB LEDs is even better distributed throughout the cooler as a result of the chrome plating. The terminal's design is in line with the classic Aurora design.

Thermal Paste and Thermal Pads

The included thermal compound is Alphacool's Subzero. With a thermal conductivity of 16 W/mK, it is one of the highest performing thermal pastes on the market. The electrically non-conductive thermal compund is particularly well suited for high contact pressures, but can still be processed perfectly due to its viscosity of 850.000 TF. Alphacool Soft Pads with 1mm thickness are used on the voltage converter and the graphics memory. The thermal conductivity of the pads is 7 W/mK. The pads for the back of the PCB are 3mm thick and have a thermal conductivity of 3 W/mK.

Compatibility

- AMD Radeon RX 7900 XTX, 24GB GDDR6, HDMI, 2x DP, USB-C
- ASUS Radeon RX 7900 XTX, RX7900XTX-24G, 24GB GDDR6, HDMI, 2x DP, USB-C (90YV0IT0-U0NM00)
- ASRock Radeon RX 7900 XTX, 24GB GDDR6, HDMI, 2x DP, USB-C
- Biostar Radeon RX 7900 XTX, 24GB GDDR6, HDMI, 2x DP, USB-C (VA7906AEF4)
- GIGABYTE Radeon RX 7900 XTX 24G, 24GB GDDR6, HDMI, 2x DP, USB-C (GV-R79XTX-24GC-B)
- PowerColor Radeon RX 7900 XTX, 24GB GDDR6, HDMI, 2x DP, USB-C (RX 7900 XTX 24G)
- XFX Radeon RX 7900 XTX, 24GB GDDR6, HDMI, 2x DP, USB-C (RX-79XMBABF9)

Technical Data (cooler)
L x W x H 268.58 x 135.20 x 34.20 mm
Material (cooler) Chrome-Plated Copper
Material (cooler top) Acrylic
Threads 4 x G1/4"
Fin Thickness 0.4 mm
Fin Distance 0.4 mm
Illumination Digital aRGB LEDs
Number of Digital aRGB LEDs 13
Power Connector Digital aRGB LEDs 3-Pin JST
Power Digital aRGB LEDs 5V
Color Transparent (clear)



Technical Data (backplate)
L x W x H 268.58 x 110.70 x 6 mm
Material Aluminium
Color Black



*Please use only in conjunction with clear transparent water cooling fluids. The particles and additives in Pastel liquids can clog and permanently damage water cooling products such as radiators, pumps, coolers and hoses. This can result in voiding the manufacturer's warranty as well.

Additional Information

NE US Item # No
Amazon ASIN NA
NE CA Item # No
Manufacturer Alphacool
GPU Chip Manufacturer AMD
Graphics Card Model AMD Radeon RX 7900 XT/XTX
Compatibility - AMD Radeon RX 7900 XTX, 24GB GDDR6, HDMI, 2x DP, USB-C
- ASUS Radeon RX 7900 XTX, RX7900XTX-24G, 24GB GDDR6, HDMI, 2x DP, USB-C (90YV0IT0-U0NM00)
- ASRock Radeon RX 7900 XTX, 24GB GDDR6, HDMI, 2x DP, USB-C
- Biostar Radeon RX 7900 XTX, 24GB GDDR6, HDMI, 2x DP, USB-C (VA7906AEF4)
- GIGABYTE Radeon RX 7900 XTX 24G, 24GB GDDR6, HDMI, 2x DP, USB-C (GV-R79XTX-24GC-B)
- PowerColor Radeon RX 7900 XTX, 24GB GDDR6, HDMI, 2x DP, USB-C (RX 7900 XTX 24G)
- XFX Radeon RX 7900 XTX, 24GB GDDR6, HDMI, 2x DP, USB-C (RX-79XMBABF9)
Number of Ports 4x G1/4
Cooling Plate Material Copper
Top Cover Material Acrylic
Color ARGB
Included 1x Alphacool Eisblock Aurora RX 7900XTX Reference with Backplate (13547)
Material Copper
