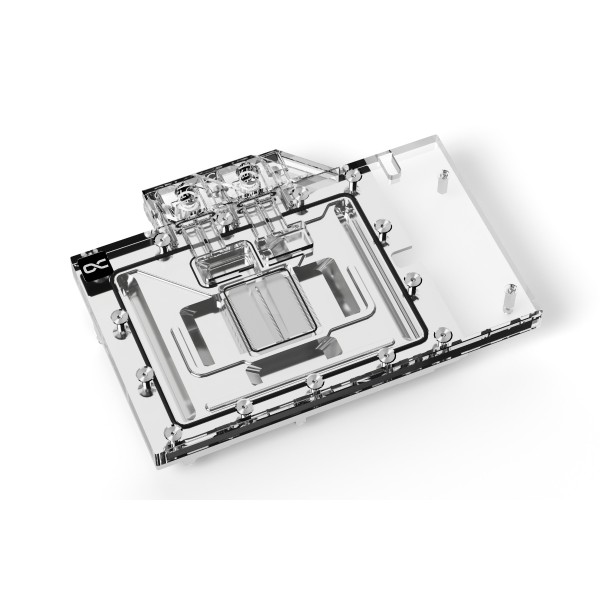

Alphacool Eisblock Aurora Acryl GPX-N RTX 4090 Founders Edition with Backplate (13456)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Alphacool Eisblock Aurora Acryl GPX-N RTX 4090 Founders Edition with Backplate (13456)

Availability: In stock - Ships in 3-7 Business Days

Sku: 1023334

$144.95

Quick Overview

The Aurora design of the Geforce RTX 4XXX Eisblock generation is visually calmer and simpler. Please Check Compatibility List Below!!!

OR

Details

  • The next generation - The Alphacool Eisblock Aurora water cooler for Geforce RTX 4XXX graphics cards. In order to dissipate the enormous waste heat of this graphics card generation in the best possible way, numerous optimizations were carried out on the water cooler compared to the previous model. The fin structure has been adapted and enables very good water flow while at the same time increasing the cooling surface. The modified nozzle plate with improved inflow engine ensures optimal water distribution on the cooling fins.

    Technical highlights
    The fin structure of this generation of ice block coolers was developed together with Nvidia board partners. The fin thickness is 0.4 mm, the distance between the cooling fins is 0.4 mm. This ensures a very good water flow while at the same time increasing the possible cooling surface. The jet plate has a revised inlay that distributes the water pressure better to the fins and optimizes heat absorption. The adjusted water flow helps the water to achieve a better inflow angle.

    Chromed copper
    The radiator is made entirely of chrome-plated copper. Chrome plating is much harder than nickel plating and therefore less sensitive to acids, scratches and damage. This completely eliminates the risk of nickel plating flaking off. In addition, chrome plating looks much more homogeneous and offers a shine that cannot be achieved with nickel plating. So far, chrome-plated coolers have only been used in the industrial sector in areas where the coolers are subject to extreme influences.

    Design
    The Aurora design of the Geforce RTX 4XXX Eisblock generation is visually calmer and simpler. Only one O-ring goes around the entire cooler. The construction around the cooling fins and the jetplate ensures a clearer look. The lighting of the digitally addressable RGB LEDs is even better distributed in the cooler thanks to the chrome plating. The shape of the terminal corresponds to the classic Aurora design.

    Thermal paste & thermal pads
    The included thermal compound is Alphacool's Subzero. With a thermal conductivity of 16 W/mK, it is one of the most powerful thermal paste on the market. The electrically non-conductive Thermal Grease is particularly well suited for high contact pressures, but can still be processed perfectly thanks to its viscosity of 850,000 TF. Alphacool soft pads with a thickness of 1mm are used on the voltage converters and the graphics memory. The thermal conductivity of the pads is 7 W/mK. The pads for the back of the PCB are 3mm thick and have a thermal conductivity of 3 W/mK.



    Compatibility:
    - Nvidia GeForce RTX 4090 Founders Edition



    Specifications cooler
    L x W x H 205.42 x 147.04 x 34.62mm
    Material radiator floor chromed copper
    Material cooler top acrylic
    connections 4 x G1/4"
    Thick cooling fins 0.4mm
    Distance cooling fins 0.4mm
    lighting digital aRGB LEDs
    Power connection digital aRGB LEDs 3 pin JST
    Voltage digital aRGB LEDs 5V
    Number of digital aRGB LEDs 12

    Specifications backplate
    L x W x H 205.42x122.89x6mm
    material aluminum
    Color black



Additional Information

NE US Item # No
Amazon ASIN NA
NE CA Item # No
Manufacturer Alphacool
GPU Chip Manufacturer nVidia
Graphics Card Model RTX 4090
Compatibility - Nvidia GeForce RTX 4090 Founders Edition
Number of Ports 4x G1/4
Cooling Plate Material Chrome Plated Copper
Top Cover Material Acrylic
Color ARGB
Included 1x Eisblock Aurora Acryl GPX-N RTX 4090 Founders Edition 1x Backplate 1x 38x15x1mm Pad 2x 51x15x1mm Pad 1x 15x15x1mm Pad 3x 8x8x1mm Pad 2x 105x8x1mm Pad 1x 100x15x1mm Pad 2x 15x8x2mm Pad 1x 40x8x3mm Pad 2x 100x8x3mm Pad 1x 45x45x3mm GPU-Pad 2x 15x15x3mm Pad 2x 51x8x3mm Pad 1x Thermal grease 1x Putty tool 4x M2x5 Screw 4x EVA washer 1x PCI Bracket 7x M2x11 Screw 1x ARGB Adaptor 2x G1/4“ Plugs 1x Plug tool
Material Copper
