Details

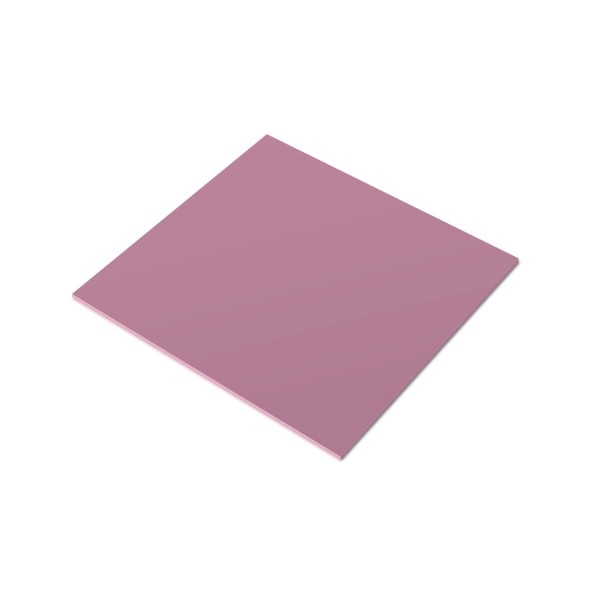

The Alphacool Core Thermal Pad Soft 9W/mk 100x100x1.5mm is a soft, silicone-based thermal pad for cooling electronic components, one 100 x 100 x 1.5 mm sheet rated at 9.0 W/mK (±10%), article number 13417. It is electrically non-conductive. The next thickness up in the same range is the 2 mm sheet.
Properties
- Size (L x W x H)
- 100 x 100 x 1.5 mm
- Thermal conductivity
- 9.0 W/mK (±10%)
- Hardness
- 50 (Shore 00) (±15)
- Working temperature
- -50 to ~180 °C
- Color
- Pink
- Pieces in the pack
- 1
What it cools
Alphacool describes it as a performance thermal pad to cool electronic components of all kinds, one that can be used where it is essential to effectively dissipate waste heat. On graphics cards that means the voltage converters and VRAMs. In addition, Alphacool says the electronic components of Playstation and Xbox game consoles can also be cooled with it, greatly improving their performance and durability.
Better Than Standard Thermal Pads?
The Soft heat conduction pad is characterized by what Alphacool calls optimal compressibility. Due to its low hardness and a natural stickiness, the maker says, the pad adapts perfectly to surfaces and compensates for unevenness between components. Alphacool's claim is that this thus ensures a significant improvement in heat transfer. Its data sheet sums the pad up in five points: high thermal conductivity, low thermal resistance, high compressibility and compliancy, natural tack and good electrical insulation.
Increased Service Life!
According to Alphacool, the special material composition of the Core pad reduces the risk of silicone bleeding. By its account the sheet can be used for a substantially longer period of time than conventional heat conduction pads without significantly losing performance.
Versatile Use!
Alphacool rates the electrical insulation of the pad as excellent. For that reason it names further uses: electronic components in electric vehicles, autopilot systems, cell phones, servers, motherboards and power supplies. The list goes on with LCD TVs, notebooks, telecommunication devices, access points, memory modules, etc. Other pads of this thickness are in our 1.5mm thermal pads section.
Technical data thermal pad
| Dimensions (L x W x H) | 100 x 100 x 1.5 mm |
| Thermal Conductivity (ASTM D5470) | 9.0 W/mK (±10%) |
| Hardness (ASTM D2240) | 50 (Shore 00) (±15) |
| Working temperature | -50 to ~180 °C |
| Volume Resistance (ASTM D257) | 1×10¹² Ohm-m |
| Dielectric Breakdown Voltage (ASTM D149) | ≥8 KV/mm |
| Density (ASTM D792) | 3.2 g/cm³ (±10%) |
| Weight Loss (ASTM E595) | less than 1% |
| Flame Rating (UL 94) | V-0 |
| Color | Pink |
| Elongation (ASTM D412) | 40% |
The packaged unit measures 130 x 130 x 2 mm and weighs 64 g.
Alphacool's datasheet and its safety data sheet are both PDF files.
