Details

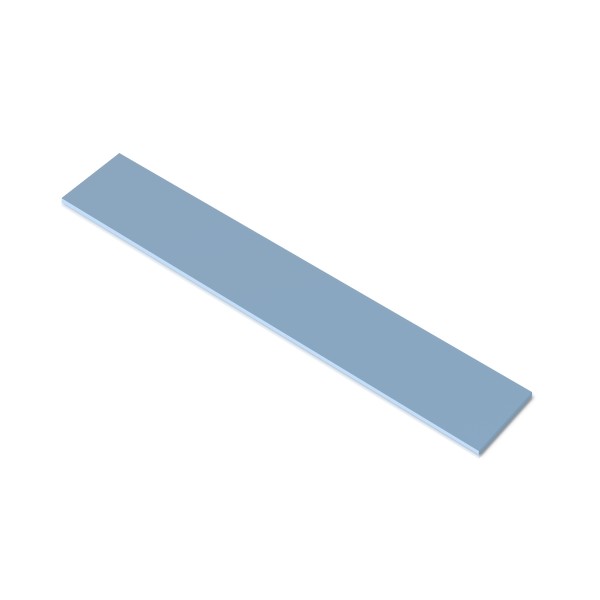

The Alphacool Core Thermal Pad Soft 6.2W/mk 120x20x1.5mm is a soft, silicone-based thermal pad measuring 120 x 20 x 1.5 mm, one pad per pack. Its thermal conductivity is 6.2 W/mK (±10%), and it can be used to cool electronic components of all kinds where it is essential to dissipate waste heat effectively. The next thickness down in this size is the Core Thermal Pad Soft 6.2W/mk 120x20x1mm.
Properties
- Size (L x W x H)
- 120 x 20 x 1.5 mm
- Thermal conductivity
- 6.2 W/mK (±10%)
- Hardness
- 50 (Shore 00) (±15)
- Working temperature
- -50 to ~150 °C
- Color
- Blue
- Pieces in the pack
- 1
Where it goes
Alphacool calls this its performance thermal pad. On graphics cards it covers the voltage converters and VRAMs. In addition, electronic components of Playstation and Xbox game consoles can also be cooled with it, greatly improving their performance and durability, according to Alphacool.
Better than standard thermal pads?
The Soft heat conduction pad is silicone-based and characterized by what Alphacool calls optimal compressibility. Due to its low hardness and a natural stickiness, it adapts to surfaces (perfectly, in Alphacool's words) and compensates for unevenness between components. Alphacool says this thus ensures a significant improvement in heat transfer. Its data sheet lists high thermal conductivity, low thermal resistance, high compressibility and compliancy, natural tack and good electrical insulation.
Increased service life!
The special material composition of the Core pad reduces the risk of silicone bleeding, Alphacool says. According to Alphacool it can be used for a substantially longer period of time than conventional heat conduction pads without significantly losing performance.
Versatile use!
The pad is electrically non-conductive, and Alphacool rates its electrical insulation as excellent. That is why it can also cool electronic components in many other devices. Alphacool names electric vehicles, autopilot systems, cell phones, servers, motherboards, power supplies, LCD TVs, notebooks, telecommunication devices, access points, memory modules, etc. Other pads of this thickness are in our 1.5 mm thermal pads section.
Technical data thermal pad
| Dimensions (L x W x H) | 120 x 20 x 1.5 mm |
| Thermal Conductivity (ASTM D5470) | 6.2 W/mK (±10%) |
| Hardness (ASTM D412) | 50 (Shore 00) (±15) |
| Working temperature | -50 to ~150 °C |
| Volume Resistance (ASTM D257) | 1×10¹³ Ohm-m |
| Dielectric Breakdown Voltage (ASTM D149) | 6 KV/mm (±10%) |
| Density (ASTM D792) | 3.1 g/cm³ (±10%) |
| Elongation (ASTM D412) | 50% |
| Weight Loss (ASTM E595) | less than 1% |
| Flame Rating (UL 94) | V-0 |
| Color | Blue |
In the box
- 1x Core Thermal Pad Soft 6.2W/mk 120x20x1.5mm
Alphacool's datasheet for this pad is a PDF.
