Details

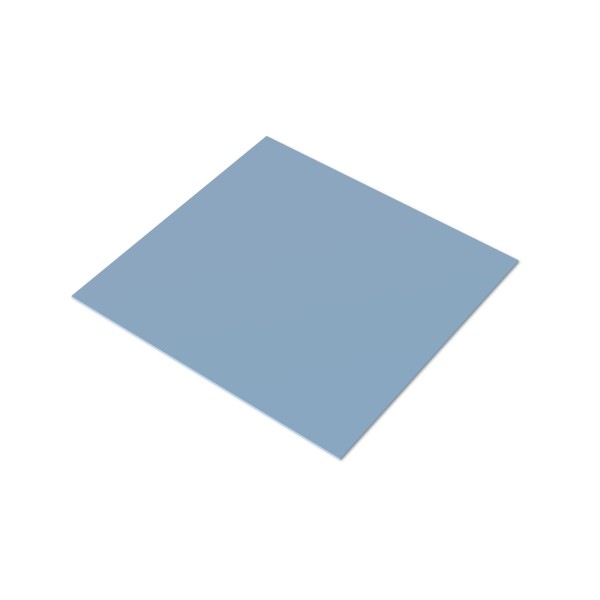

The Alphacool Core Thermal Pad Soft 6.2W/mk 100x100x0.5mm is a soft, silicone-based thermal pad, 100 x 100 mm and 0.5 mm thick, with a thermal conductivity of 6.2 W/mK. One pad per pack. The same pad comes 1 mm thick and 1.5 mm thick.
Properties
- Size (L x W x H)
- 100 x 100 x 0.5 mm
- Thermal conductivity
- 6.2 W/mK (±10%)
- Hardness
- 50 (Shore 00) (±15)
- Working temperature
- -50 to ~150 °C
- Electrically conductive
- No
- Color
- Blue
What it cools
Alphacool's performance thermal pad can be used to cool electronic components of all kinds, anywhere it is essential to effectively dissipate waste heat. Voltage converters and VRAMs on graphics cards are where it usually goes. In addition, electronic components of Playstation and Xbox game consoles can also be cooled, greatly improving their performance and durability according to Alphacool.
Better Than Standard Thermal Pads?
Alphacool says the Soft heat conduction pad is characterized by optimal compressibility. Due to its low hardness and a natural stickiness, the pad adapts perfectly to surfaces and compensates for unevenness between components, in Alphacool's words. The maker says this thus ensures a significant improvement in heat transfer.
Increased Service Life!
According to Alphacool, the special material composition reduces the risk of silicone bleeding. It adds that the pad can be used for a substantially longer period of time than conventional heat conduction pads without significantly losing performance.
Versatile Use!
The pad is electrically non-conductive, which Alphacool calls excellent electrical insulation. For that reason it lists more uses: electric vehicles, autopilot systems, cell phones, servers, motherboards, power supplies and LCD TVs. Notebooks, telecommunication devices, access points, memory modules, etc. are on the same list.
Technical Data
| Dimensions (L x W x H) | 100 x 100 x 0.5 mm |
| Thermal Conductivity (ASTM D5470) | 6.2 W/mK (±10%) |
| Hardness (ASTM D412) | 50 (Shore 00) (±15) |
| Working Temperature | -50 to ~150 °C |
| Volume Resistance (ASTM D257) | 1×10¹³ Ohm-m |
| Dielectric Breakdown Voltage (ASTM D149) | 6 KV/mm (±10%) |
| Density (ASTM D792) | 3.1 g/cm³ (±10%) |
| Elongation (ASTM D412) | 50% |
| Weight Loss (ASTM E595) | less than 1% |
| Flame Rating (UL 94) | V-0 |
| Color | Blue |
In the box
- 1x Alphacool Core Thermal Pad Soft 6.2W/mk 100x100x0.5mm (13402)
Alphacool's datasheet is a PDF.
