Details

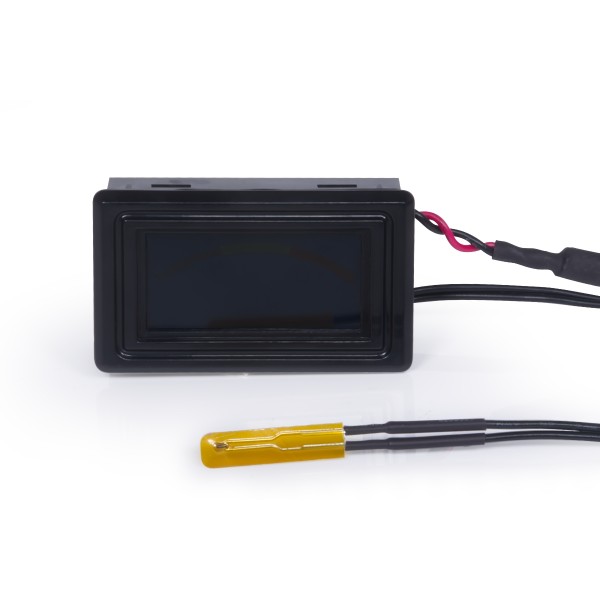

The Alphacool Core Temperature Sensor with C/F Display is a flat temperature sensor on a cable of approx. 100 cm with a separate color display, powered by 4-pin Molex. A version with two G1/4 internal threads is the Core Temperature Sensor G1/4 with C/F Display.
Properties
- Sensor
- NTC 10 kOhm thermistor, flat and flexible
- Measuring range
- -50 to 110 °C
- Power
- 4-pin Molex, 12 V
- Sensor cable
- approx. 100 cm
- Color
- Black
Integration made easy
Alphacool says the Core Sensor allows you to show the temperature of the fluid inside your cooling loop. Thanks to the available color display, it can be read either in degrees Celsius or Fahrenheit. Being flat as well as flexible, the sensor allows easy mounting on the component to be monitored.
Temperature sensor & display
The sensor used is a classic NTC 10 kOhm thermistor. Its cable has a length of approx. 100 cm, which Alphacool says offers enough possibilities for a comfortable installation. Power is supplied via a 55 cm long cable that carries one male and one female 4-pin Molex connector. The readable temperature range is between -50 and 110 °C, with a possible deviation of 0.1 °C. A color scale on the display helps you keep track of critical temperature ranges at any time. Additional software for reading out the temperature ranges is not required.
What it needs
The display needs a free 4-pin Molex plug from the power supply. Other sensors of this kind are in our thermal sensors section.
Technical data
| Dimensions display | 47.8 x 28.2 x 16.7 mm |
| Type of display | multi-colored, indication optionally in °C or Fahrenheit |
| Sensor type | NTC 10 kOhm thermistor |
| Power connection | 4-pin Molex (12 V) |
| Power cable length | 550 mm |
| Length sensor cable | 1000 mm |
| Temperature measuring range | -50 to +110 degrees Celsius |
| Color | Black |
Notes
- Use only clear, transparent water cooling fluids. Alphacool warns that the particles and additives in pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, which can void the manufacturer's warranty.
In the box
- 1 x Alphacool Core temperature sensor with C/F display, Deep Black
Alphacool's data sheet is a PDF.
