Details

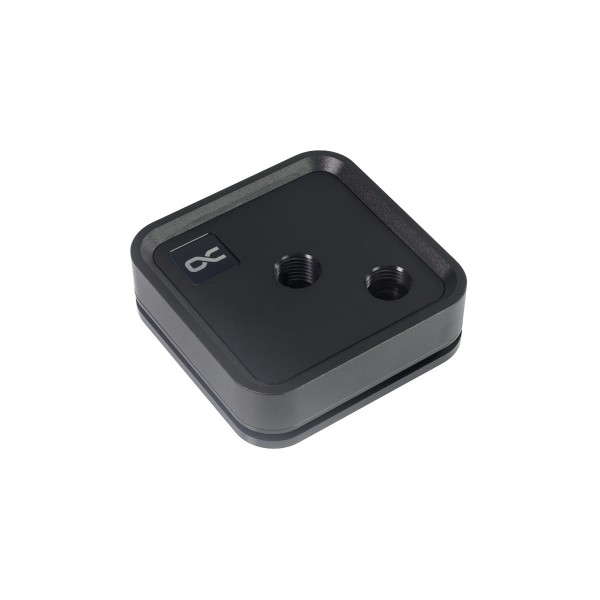

The Alphacool Core 1 LT Black is a CPU water block for AMD AM4 and AM5 and for Intel LGA 1700 and LGA 1851. It is the light version of the Core 1: a nickel-plated copper base housed in a black polymer casing.
Properties
- Intel sockets
- LGA 1700, 1851
- AMD sockets
- AM4, AM5
- Cold plate
- Nickel-plated copper
- Top
- Acetal, black
- Ports
- 2 x G1/4
- Size
- 71.80 x 71.80 x 28.05 mm
Fit
Alphacool adds one caution to its compatibility list: the Eiszapfen PRO 16mm HardTube fittings cannot be used with this CPU cooler. Its manual gives 24 mm as the largest diameter a connection at the IN and OUT ports may have.
The CPU Brackets AMD Set and the four AMD threaded bolts are for AM4 and AM5. The CPU Brackets INTEL Set, the Core Backplate and the four INTEL threaded bolts are for the Intel sockets, which Alphacool lists as LGA 1700 and LGA 1851. Neither side needs a separately sold bracket.
The new mounting system is also included, and Alphacool says it simplifies installation with Intel and AMD processors. It has been revised and, compared to previous Alphacool models, requires fewer screws. On an Intel board the pre-assembly of the backplate (Intel) with four spacers is done first. The thermal paste is applied to the CPU after that. Then the matching mounting frame is put on the cooler and fastened with four nuts on the spacers. On an AMD board the manual has you remove the two-piece retention frame first, and on both platforms its instruction is to hand tighten only.
3D jetplate and cross-slot base
Alphacool presents the block as the light version of its proven Core 1 CPU water cooler. It also uses the reliable combination of 3D jetplate and cross slot-technology. According to Alphacool, this enables the block to effectively dissipate the enormous waste heat of the latest desktop processors.
Under the heading of the best of new and old, Alphacool says the Core 1 water cooler series combines the best of both worlds. In addition to the new 3D jetplate, it returns to its roots by distributing the coolant evenly across the redesigned cooler base, using proven cross-slot technology. Inside the cooler, O-rings ensure a precise water flow and thus, in Alphacool's words, guarantee effective cooling. The base has been enlarged to achieve full coverage of large CPUs.
Core design
Alphacool names the functional and elegant design as a central element of its Core series, whose focus is on cooling performance at a fair price. Rounded corners add what Alphacool calls the perfect touch to the overall look. With that design, it says, the block integrates seamlessly into any water cooling system. The Core 1 LT is available in both non-illuminated and transparent aRGB versions, and this black one is the non-illuminated version.
What the loop needs
The block has two G1/4 threads in its acetal top. Both take the compression fittings for your tube size, which are not in the box. There is no lighting to connect: the manual supplies its ARGB adapter only with the aRGB variant. To run, the block needs a pump and a radiator in the same loop.
Technical data
| Dimensions (L x W x H) | 71.80 x 71.80 x 28.05 mm |
| Material cooler | nickel plated copper |
| Material cooler top | acetal |
| Material threads | acetal |
| Threads | 2 x G1/4 |
| Fin thickness | 0.4 mm |
| Fin distance | 0.4 mm |
| Pressure tested | 0.8 bar |
| Max working temperature | 60 °C |
| Weight | 250 g |
| Color | black |
Notes
- Alphacool asks that the block be used only with clear transparent water cooling fluids. It warns that the particles and additives in Pastel liquids can clog and permanently damage radiators, pumps, coolers and hoses, and that this can void the manufacturer's warranty.
In the box
- 1x Core 1 LT CPU Cooler
- 1x Thermal Grease
- 1x Putty tool
- 1x CPU Brackets AMD Set
- 4x Threaded bolt AMD
- 4x Screw sleeve
- 1x CPU Brackets INTEL Set
- 1x Core Backplate
- 4x Threaded bolt INTEL
- 4x EVA Washer
Alphacool's manual and data sheet are both PDFs. Its 3D model of the block is an STP file, and the 3D viewer shows it from every side.
