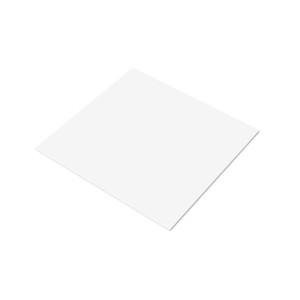

Alphacool Apex Thermal Pad Soft 18W/mk 100x100x1mm (13483)

Double click on above image to view full picture

Zoom Out
Zoom In

More Views

Alphacool Apex Thermal Pad Soft 18W/mk 100x100x1mm (13483)

Availability: In stock - Available Now

Sku: 1023417

$135.50

Quick Overview

Alphacool offers a wide range of thermal pads to enable effective heat dissipation from electrical components. The Apex thermal pad is the most powerful option and can reliably dissipate the waste heat. Thanks to its strong compressibility, it is also versatile.
OR

Details

Alphacool offers a wide range of thermal pads to enable effective heat dissipation from electrical components. The Apex thermal pad is the most powerful option and can reliably dissipate the waste heat. Thanks to its strong compressibility, it is also versatile.

Powerful!
Alphacool's silicone-based ultrasoft thermal pad Apex has optimal compressibility. Due to its low hardness and natural stickiness, it can be perfectly adapted to surfaces and evens out unevenness between components. Thus, it greatly improves heat transfer.

Longer Life!
Thanks to its unique material composition, the risk of silicone bleeding from the Apex thermal pad is significantly reduced. It can cool reliably for a far longer period of time without suffering a significant drop in performance.

Versatile!
Due to its excellent electrical insulation, the thermal pad is suitable for cooling electrical components in a wide range of devices such as electric vehicles, autopilot systems, mobile phones, servers, motherboards, power supplies, LCD TVs, notebooks, telecommunications equipment, access points, memory modules and many others.

Technical Data
L x W x H 100 x 100 x 1.0 mm
Thermal Conductivity (ASTM D5470) 17.8 W/mK (±10%)
Hardness (ASTM D2240) 65 (Shore 00) (±5)
Operating Temperature -50 to ~150°C
Volume Resistivity (ASTM D257) 6×10¹² ohm-m
Dielectric Constant (ASTM D149) 4KV/mm (±10%)
Density (ASTM D792) 3.5 g/cm³ (±10%)
Elongation (ASTM D412) 20%
Weight Loss (ASTM E595) Less than 1%
Flame Rating UL 94 V-0
Color Light Grey

Datasheet (EN)

Safety Data Sheet

Additional Information

Amazon ASIN NA
NE CA Item # No
NE US Item # No
Manufacturer Alphacool
Overall Dimensions 100 x 100 x 1.0 mm
Thermal Conductivity 18W/mk
Pad Thickness 1.0mm
Color Grey
Included 1x Alphacool Apex Thermal Pad Soft 18W/mk 100x100x1mm (13483)
Material No
